A fully automatic flatbed die cutting machine with an integrated stripping section, engineered for high-speed, high-precision die cutting and creasing of corrugated board and carton board. The MWZ 1450G and MWZ 1670G models combine the upgraded ZHI-series smart technologies - one-key setup, automated locking, pressure memory - with a full in-line stripping section, handling 1-5 layer board stock up to 8 mm (1450G). Built to keep large-format packaging lines running around the clock.
The Fast 1450G and 1670G are large-format, fully automatic die cutting machines with stripping section, developed by Shandong Century Machinery Co., Ltd. for the packaging and printing industry. Every sheet is fed, die cut, creased, stripped and delivered automatically - no manual stripping labor, no bottleneck between cutting and stacking.
In conventional die cutting lines, waste removal is a separate, labor-intensive step. The 1450G/1670G integrates a full stripping section as standard equipment: waste matrixes are removed in-line from each die-cut sheet, producing clean, ready-to-stack blanks in a single pass. This shortens the production chain for corrugated boxes and folding cartons and removes the most common source of line bottlenecks.
With a maximum sheet size of 1480 x 1200 mm and a top mechanical speed of 7,000 sheets per hour, the 1450G automatic die cutting machine is the choice for high-volume corrugated board and carton board production where speed is the priority.

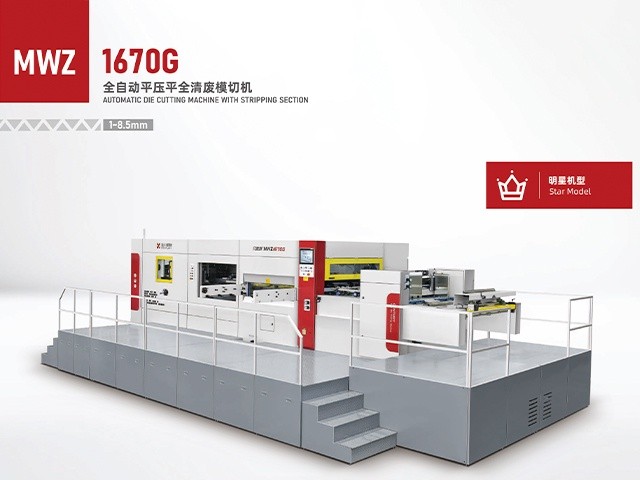

Handling sheets up to 1670 x 1260 mm, the 1670G flatbed die cutter serves extra-large corrugated packaging, display and POS jobs. Its 400 t cutting pressure, three cam servo motors and central positioning system keep cutting accuracy at ±0.5 mm even at continuous full-format operation.
Both models support the mirror version layout: two die cutters share one chase changer and some operation steps, reducing space cost, while one operator is able to operate and monitor both machines on separate jobs for production flexibility and efficiency.
Six G-series upgrades that make this flatbed die cutter with stripping section faster to set up, easier to operate and more reliable in 24/7 production.
One-key start with instant recall of up to 1,000 tool/hose configurations. Based on historical job data, 16 servo motion centers auto-match work positions - fast setup, minimal operator adjustment.
Hydraulic and central-positioning fixtures with pneumatic locking are designed to reduce vibration and ensure safety and security during high-speed die cutting.
Massive storage capacity with preset schemes and easy retrieval. Repeat jobs are recalled by entering a code, entering a name or scanning a barcode.
Automatic pressure memory and fast recall keeps product quality consistent, compensating for differences between new and old blades without raising operator skill requirements.
One-piece integrated motor pinch wheel with one-time adjustment frame for fast setup, reducing adjustment time and improving working efficiency.

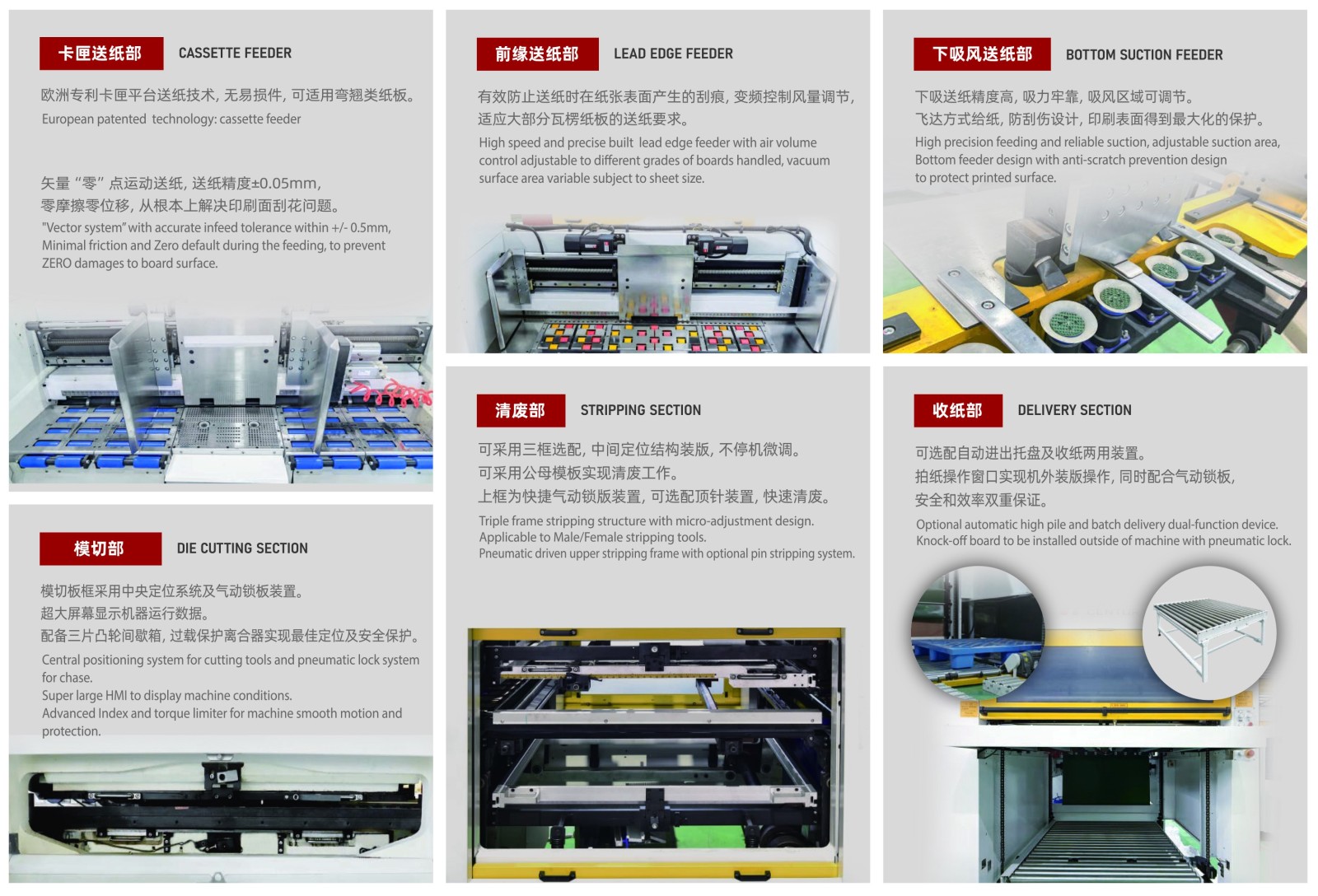

Triple stripping pinch rolls with middle adjustment, three-stage exhaust and optional pin stripping system remove waste fast. Applicable to blank/female stripping tools; pneumatic down-paper stripping frame.
One fully automatic pass replaces the traditional die cutting plus manual stripping workflow.
Corrugated board or carton board sheets are fed automatically from the pile into the register system with accurate front and side lay alignment.
The die cutting section applies up to 450 t of cutting pressure at up to 7,000 sheets/h, cutting and creasing the packaging blank to ±0.5 mm precision.
The integrated stripping section removes waste matrixes automatically from every sheet, leaving only the finished blank - no manual stripping labor.
Finished products are delivered clean and ready to stack or feed directly into folding and gluing lines. Optional automatic pile delivery completes the line.
See the MWZ 1450G/1670G series feeding, die cutting, stripping and delivering in one continuous pass.
Demo video coming soon - contact us to request a live machine video

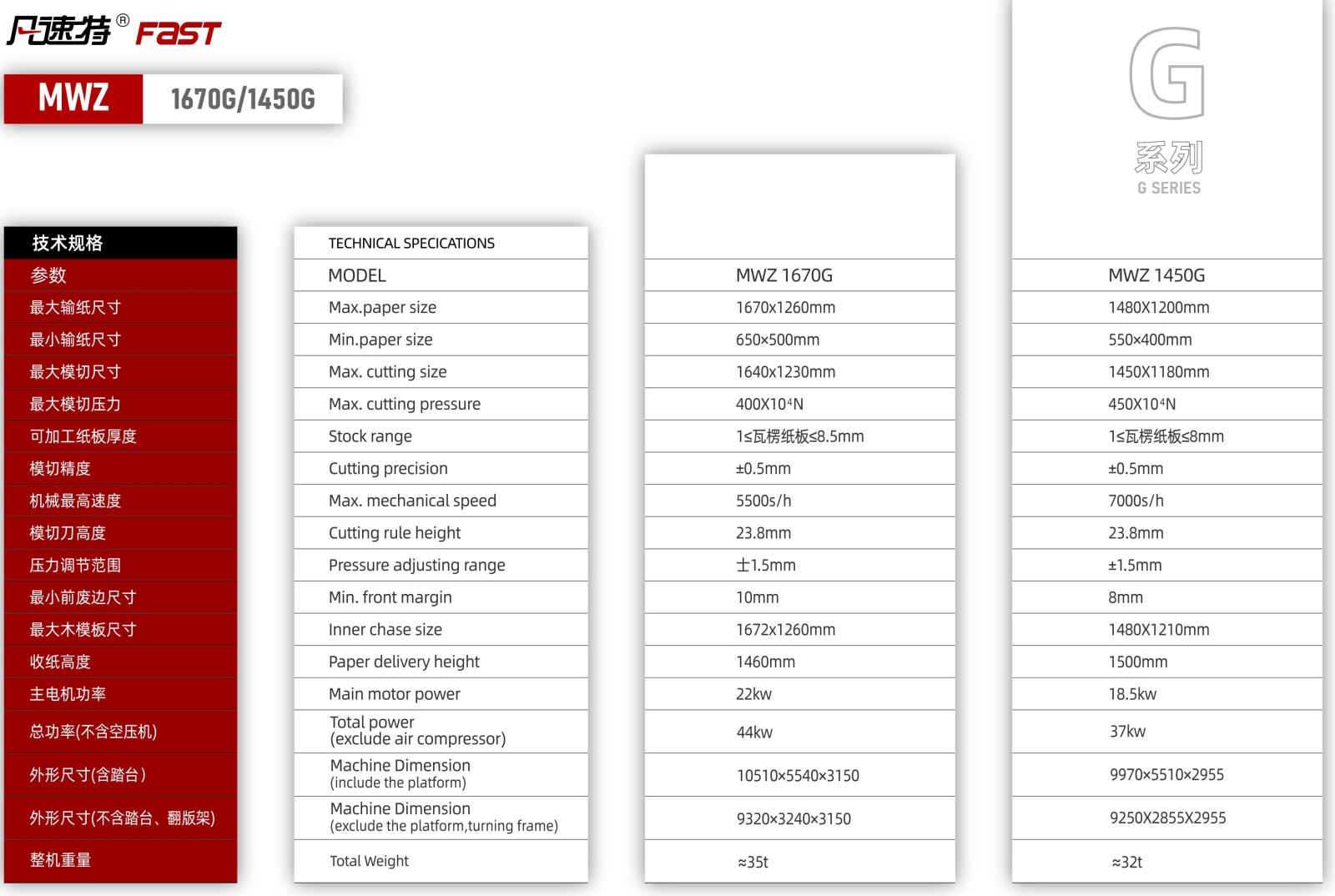

Compare the two automatic flatbed die cutting machine models to match your maximum sheet size and production speed requirements.
Specifications may be adjusted without prior notice. Confirm the final configuration for your board type and die-cutting size with our engineers before ordering.
The MWZ 1450G/1670G automatic die cutting machine with stripping section serves three key application industries across the packaging chain.
Optional automatic high pile and batch delivery dual-function device with pneumatic kick knock-off board, for continuous production from feed to stack.
Optional pin stripping system and waste return device on the stripping section speed up removal of complex waste layouts, enabling fast, non-stop stripping.
Cassette feeder band width is adjustable beyond 20 mm, with a reinforced 30 mm version available on request for thicker board runs.
The machine can be integrated with production management systems for digital management; remote maintenance and equipment upgrade services are available.
Buying a large-format flatbed die cutter is a long-term investment. Here is what 7,000+ customers in 70+ countries rely on.
Shandong Century Machinery (Xinchuan) is a national high-tech enterprise and a Shandong Province specialized & innovative "Little Giant", holding 118 independent intellectual property rights and recognized as a Shandong Provincial Industrial Design Center. Its 40,000 m² plant employs over 300 staff, including more than 50 R&D engineers.
