Fast MWZ1300/1450/1620/2100Q*ZHI automatic die cutting machine with stripping section

THE Q SERES UPGRADED FEATURES, NOW CALLED TNTELLIGENCE CAN INCLUDE THE FOLLOWING.
INTELLIGENT CHARACTERISTICS
Automated setup and job recall function for fast job setup;Memory capacity up to 10000 jobs dataFastcheck on jobs data.Fast automated setup on job selectedthanks to 16 servo motors control.
It can be integrated with production management systems to helpenterprises achieve digital management. Remote maintenanceand equipment upgrade services are available.

Inquiry

MWZ1300 / 1450 / 1620 / 2100Q Series
Automatic Flatbed Die-Cutting Machine with Full Stripping – “ZHI” Smart Series

Next-Generation Intelligent Die-Cutting for Large Format Packaging

The MWZ series (1300Q, 1450Q, 1620Q, 2100Q) is a range of fully automatic flatbed die-cutting machines with full in-line stripping. Engineered for high-precision, high-automation packaging printing, these models integrate the “ZHI” (Smart) series core technologies — delivering intelligent setup, fast job changeovers, automatic waste removal, and real-time diagnostics for corrugated board and carton board.

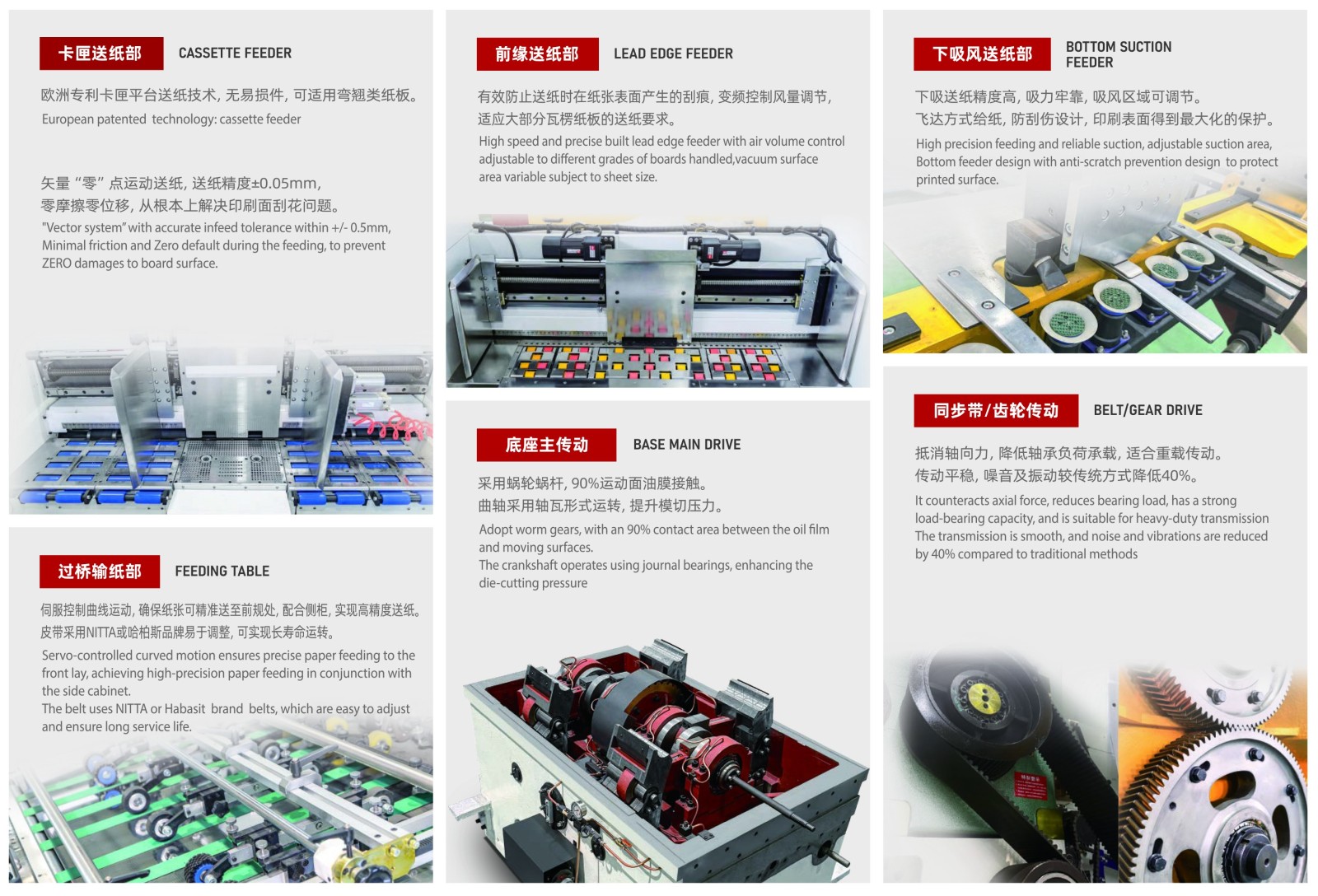

Key Technical Features

1. Intelligent Full Stripping System
Fully automatic waste separation and removal
Clean, ready-to-stack finished sheets
Eliminates manual stripping labor

2. One-Key Chase Locking Device
Hydraulic or mechanical locking with single-button control
Reduces chase changeover time significantly
Ideal for short runs and frequent job changes

3. One-Key Electrical Control System
Centralized HMI touchscreen with recipe storage
One-key recall for repeat job parameters
Reduces setup errors and operator adjustment time

4. Heavy-Duty Platen & Toggle Mechanism
Precision-ground cast iron platen for uniform cutting pressure
High-strength double toggle links for long-term stability
Suitable for 24/7 industrial operation

5. High-Speed Feeder with Non-Stop Option
Advanced suction head with automatic pile height control
Handles corrugated (up to 8.5mm) and carton board (down to 1mm)
Optional non-stop feeding for continuous production

6. Real-Time Diagnostics & Safety
Automatic fault alerts with troubleshooting guidance
Integrated light curtains and emergency stop system
CE certified safety compliance

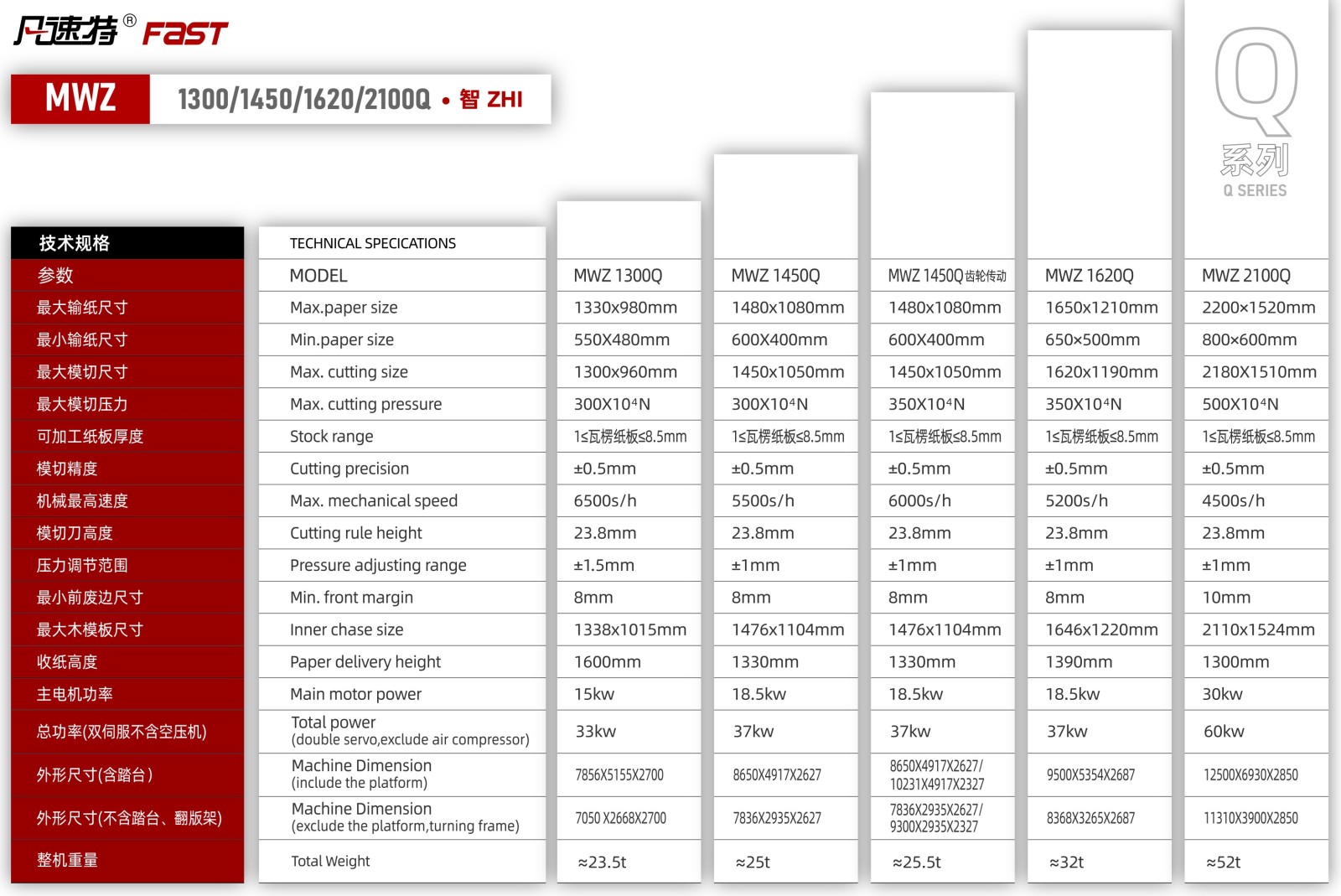

Technical Specifications

Parameter	MWZ1300Q	MWZ1450Q	MWZ1620	MWZ2100Q
Max. sheet size (mm)	1300 × 980	1450 × 1080	1650 × 1210	2200 × 1520
Min. sheet size (mm)	550 × 480	600 × 400	650 × 500	800 × 600
Max. die-cutting size (mm)	1300 × 960	1450 × 1050	1620 × 1190	2180 × 1510
Max. cutting pressure (tons)	300	300	350	500
Max. mechanical speed (sheets/hour)	6500	5500	5200	4500
Material thickness (mm)	1 – 8.5
Suited materials	Corrugated board / Carton board / Micro-flute

*Specifications subject to change without notice.*

“ZHI” Smart Series – Intelligent Upgrades

The MWZ series incorporates six signature smart features:

Smart Feature	Description
Smart Setup	Parameter presets for repeat jobs
Smart Lockup	One‑key chase locking
Smart Control	Centralized HMI with one‑key recall
Smart Stripping	Fully automatic waste removal
Smart Safety	Integrated light curtains & E‑stop
Smart Diagnostics	Real-time fault alerts with solutions

Advantages for Your Production

✅ Short order expert – Fast changeover minimizes downtime between jobs
✅ High precision – Consistent cutting pressure for complex die lines
✅ Labor saving – Fully automatic stripping reduces manual work
✅ Large format capability – Up to 2100mm sheet width for oversized packaging
✅ Global reliability – CE certified, ISO9001, over 7000 customers worldwide

Typical Applications
