What is the maximum sheet size for MWZ1450G and MWZ1670G?

MWZ1450G handles up to 1480x1200mm. MWZ1670G handles up to 1670x1260mm. Both support corrugated board thickness from 1mm to 8.5mm.

What is the warranty policy for Century die cutting machines?

Century offers a 12-month warranty from the shipping date covering manufacturing defects. On-site installation and operator training are provided by qualified engineers.

Can one operator run two MWZ1450G/1670G machines?

Yes. With the optional mirror left/right configuration, two machines share one chase changer, saving up to 40% floor space, and a single operator can manage both machines running independent jobs.

What materials can the MWZ1450G/1670G die cut?

The machines are designed for corrugated board (1-8.5mm), carton board, and micro-flute materials. Ideal for packaging boxes, display stands, PP material, and electronic packaging.

Is the MWZ1450G/1670G CE certified?

Yes, the MWZ1450G/1670G series is CE certified and manufactured under the ISO9001 quality management system.



Current Position: HOME > PRODUCT > Fully automatic die cutting machine > Fast MWZ1450/1670G*ZHI automatic flatbed die cutting machine with stripping section

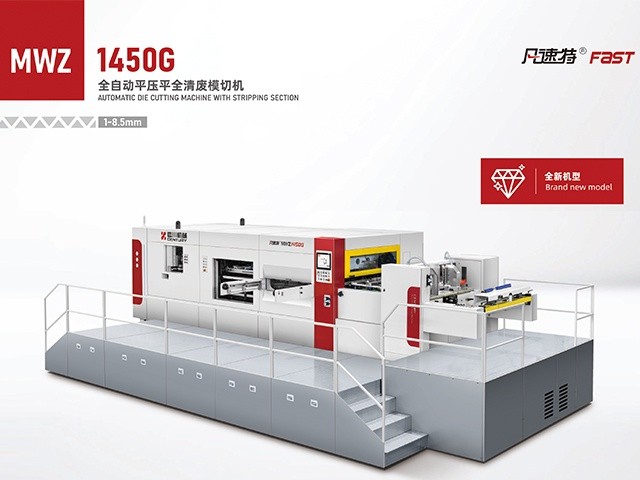

Fast MWZ1450/1670G*ZHI automatic flatbed die cutting machine with stripping section

MWZ1450G & MWZ1670G "ZHI" Series intelligent automatic flatbed die cutters with stripping. Mechanical speed up to 5,500 sheets/h, cutting precision ±0.5mm. MWZ1670G max sheet size 1670×1260mm; MWZ1450G max sheet size 1450×1100mm. Stock range 1–8.5mm corrugated. One-touch chase locking. CE certified.

Inquiry

Fast MWZ1450/1670G Automatic Flatbed Die Cutting Machine with Stripping Section | Century Machinery

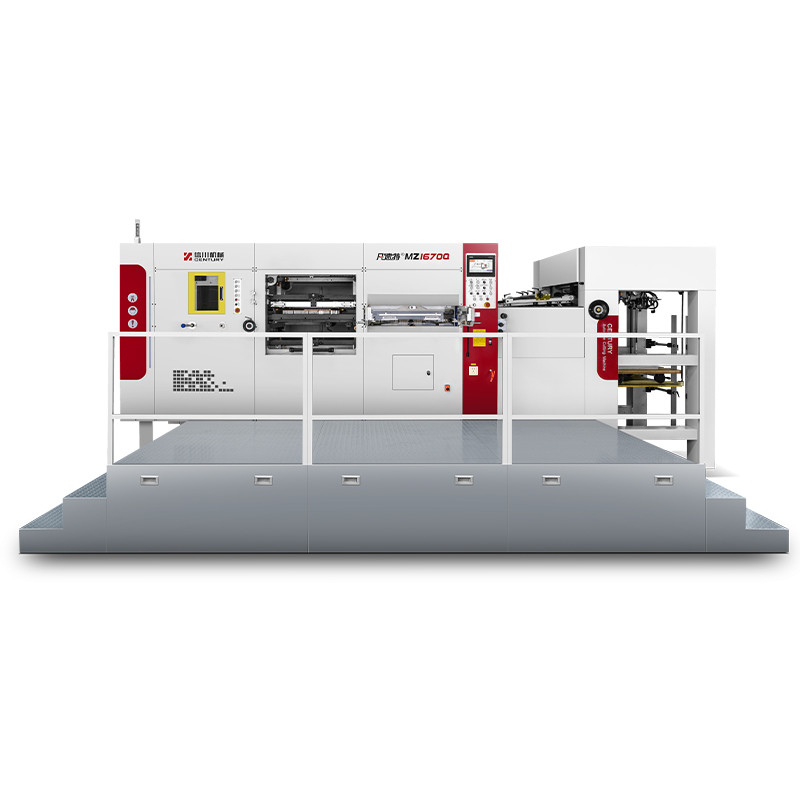

Fast MWZ1450G automatic flatbed die cutting machine with stripping section — front view showing feeder and delivery stack

MWZ1670G die-cut corrugated box output sample

Fast MWZ1450/1670G — Automatic Flatbed Die Cutting Machine with Stripping Section

MWZ1450G & MWZ1670G "ZHI" Series intelligent automatic flatbed die cutters with full in-line stripping. Mechanical speed up to 7,000 sheets/h, cutting precision ±0.5 mm, max sheet 1670×1260 mm. One-key chase locking. CE certified.

Max Speed 7,000 sheets/h
Max Sheet 1670 × 1260 mm
Full Stripping Section (Standard)
One-Key Chase Locking
Cutting Precision ±0.5 mm
CE Certified | ISO 9001
Stock Range 1–8.5 mm
Mirror Layout Option Available

Get a Free Quote Call +86 183-6562-5151

CE Certified ISO 9001 12-Month Warranty 70+ Countries

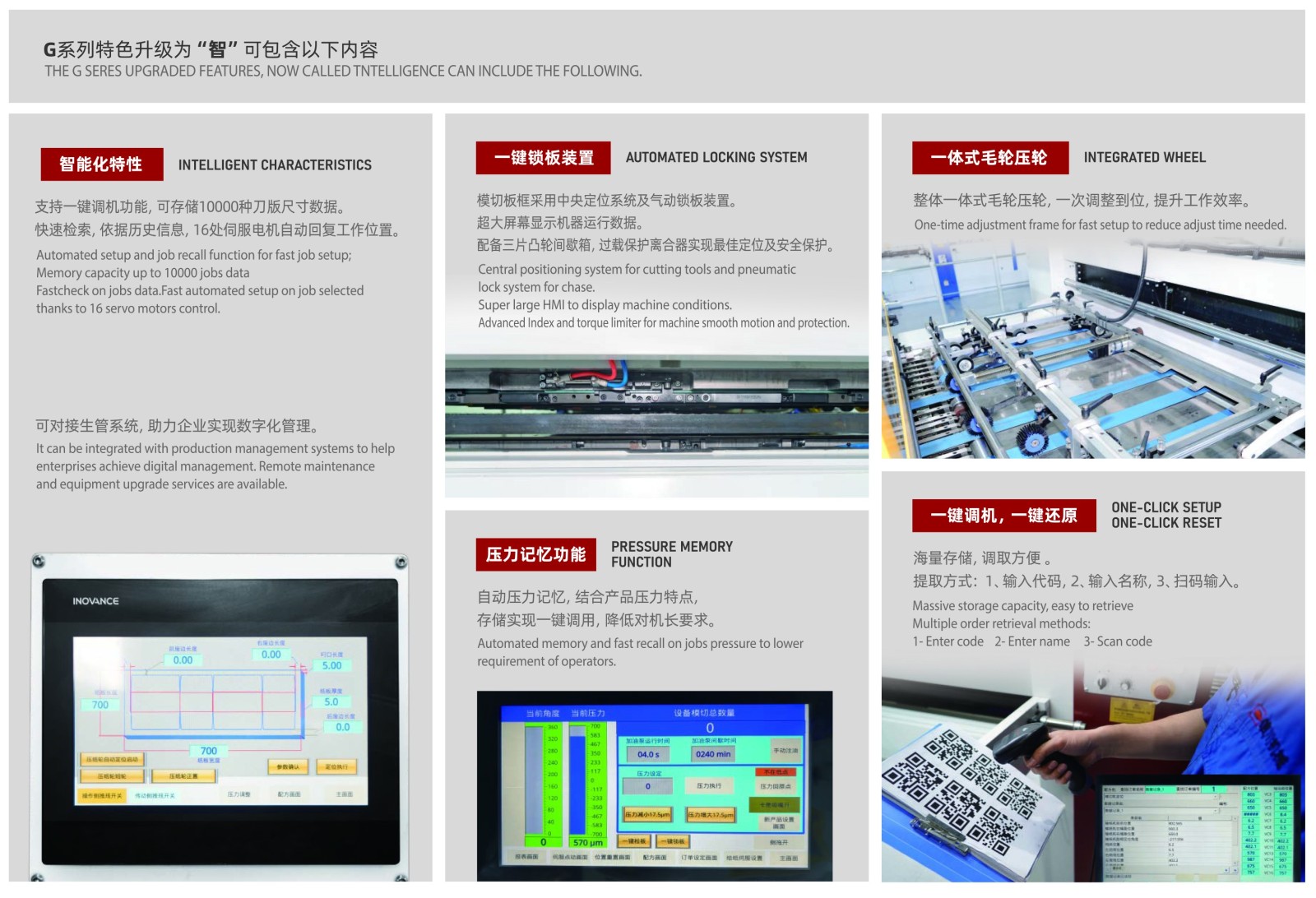

Key Features

⚙

One-Key Chase Locking

Quickly locks the die-cutting chase with a single press. Drastically reduces setup and changeover time. Ideal for short runs and frequent job changes — the "Short-Order King."

⌨

Full Stripping Section (Standard)

Automatically removes waste from die-cut sheets, producing clean, ready-to-stack finished products. Eliminates manual stripping labor entirely.

⚡

One-Key Electrical Control System

Centralized HMI with parameter memory. One-key recall for repeat jobs minimizes operator adjustment time and ensures consistent output.

↔

Mirror Left/Right Configuration

Two machines share one chase changer, saving up to 40% floor space. One operator can run both machines independently for different jobs.

⚒

Heavy-Duty Construction

Precision-ground platen for consistent cutting pressure. High-strength toggle mechanism ensures long-term stability under 24/7 high-intensity operation.

☷

Remote Diagnostics

Optional remote diagnostics and data acquisition module enables real-time monitoring, predictive maintenance alerts, and over-the-air troubleshooting support.

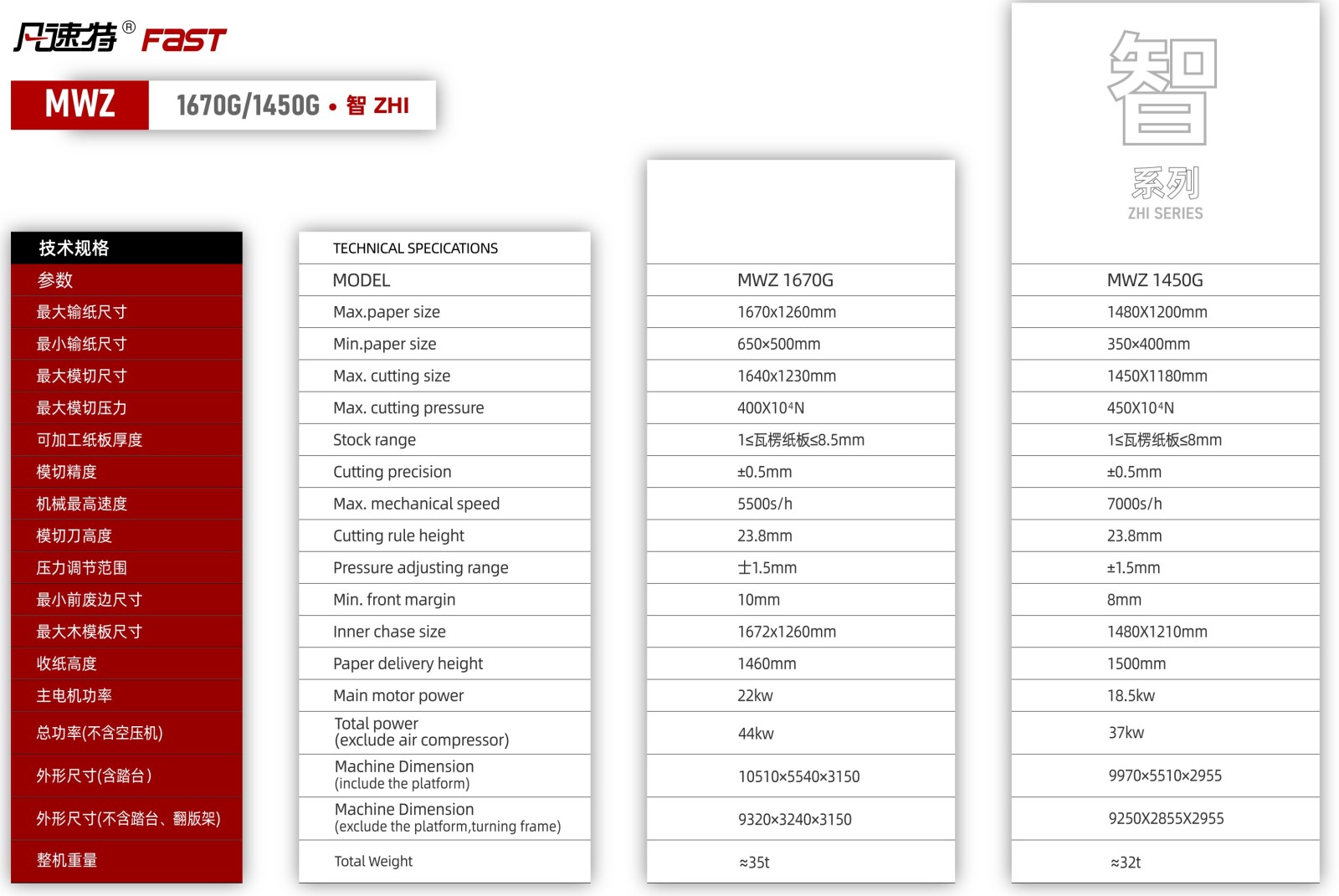

Technical Specifications

Parameter	MWZ1670G	MWZ1450G
Max. Paper Size	1670 × 1260 mm	1480 × 1200 mm
Min. Paper Size	650 × 500 mm	350 × 400 mm
Max. Cutting Size	1640 × 1230 mm	1450 × 1180 mm
Max. Cutting Pressure	400 × 10⁴ N	450 × 10⁴ N
Stock Range	Corrugated board 1 – 8.5 mm	Corrugated board 1 – 8 mm
Cutting Precision	±0.5 mm	±0.5 mm
Max. Mechanical Speed	5,500 sheets/h	7,000 sheets/h
Cutting Rule Height	23.8 mm	23.8 mm
Pressure Adjusting Range	±1.5 mm	±1.5 mm
Min. Front Margin	10 mm	8 mm
Inner Chase Size	1672 × 1260 mm	1480 × 1210 mm
Paper Delivery Height	1,460 mm	1,500 mm
Main Motor Power	22 kW	18.5 kW
Total Power (excl. air compressor)	44 kW	37 kW
Machine Dimensions (incl. platform)	10,510 × 5,540 × 3,150 mm	9,970 × 5,510 × 2,955 mm
Machine Dimensions (excl. platform & turning frame)	9,320 × 3,240 × 3,150 mm	9,250 × 2,855 × 2,955 mm
Total Weight	≈35 t	≈32 t

*Specifications are subject to change without notice. Custom configurations available upon request.

Why Choose MWZ1450G / 1670G?

✓

Short Order Expert Fast changeover design optimized for short runs and high-mix, low-volume production.

✓

Small Footprint Mirror layout reduces floor space by up to 40% — ideal for space-constrained workshops.

✓

Labor Saving One operator manages two machines in mirror configuration. Full stripping eliminates manual waste removal.

✓

High Reliability CE certified, ISO 9001 quality system. Precision-ground platen for consistent long-term performance.

✓

Global Support 7,000+ customers served in 70+ countries. On-site installation, training, and 24h technical response.

✓

Smart Operation HMI with parameter memory — recall previous jobs in one click. Remote diagnostics available.

Applications

The MWZ1450G/1670G handles a wide range of packaging and converting applications across diverse industries.

📦

Corrugated Boxes

🎁

Gift Packaging

🍿

Food & Beverage

💻

Electronics

📦

Display Stands

🛍

PP Material

⚙

Micro-Flute

🏠

Furniture Packaging

Optional Configurations

Non-stop feeder for continuous production
Mirror left/right layout — save 40% floor space
Remote diagnostics & data acquisition module
Automatic pile delivery system
Custom sheet size adaptations
Extended warranty packages

Frequently Asked Questions

Q1: What is your warranty policy?

We offer a 12-month warranty from the shipping date, covering manufacturing defects. During this period, we provide repair, replacement, or refund services according to our "three guarantees" policy. Extended warranty packages are also available.

Q2: Do you send engineers for on-site installation and commissioning?

Yes. We dispatch qualified service engineers to your facility to perform full machine installation, calibration, and commissioning. They ensure your MWZ series die-cutter is set up correctly and running at optimal performance before handover.

Q3: What training do you provide for my operators?

Our engineers provide comprehensive on-site training covering machine operation, daily maintenance, troubleshooting, and safety procedures. We also supply detailed manuals and video guides for ongoing reference.

Q4: What is your after-sales service response time?

For technical support, our team responds within 24 hours on weekdays and within 48 hours on weekends. For critical issues requiring an on-site visit, we typically arrange engineer dispatch within 5–7 business days after confirmation, depending on visa and travel requirements.

Q5: What are your payment and shipping terms?

We operate on a standard deposit + balance before shipment structure. Shipping terms are flexible — FOB, CIF, or EXW based on your preference. We partner with reliable freight forwarders to ensure safe and timely delivery worldwide.

Q6: Can the MWZ1450G/1670G handle short-run production?

Absolutely. The one-key chase locking system minimizes changeover time, making it one of the fastest machines for short-run and high-mix production. Many customers call it the "Short-Order King."
