MZ1060/1300/1450/1670QS Top Feeder Automatic Die Cutting Machine

Fast MZ1060/1300/1450/1670QS Top Feeder Automatic Die Cutting Machine with Stripping Section

A high-speed top feeder (top suction) fully automatic flatbed die cutting machine with integrated stripping section, engineered for printed cartons and corrugated board. Five models from MZ1060 to MWZ1670QS cover sheet sizes from 1060×760 mm up to 1670×1260 mm — with speeds up to 8,000 sheets/h and cutting precision from ±0.1 mm.

Up to 8,000 sheets/h (MZ1060)
±0.1 mm cutting precision
Max sheet 1670×1260 mm (1670QS)
Carton board 90–2000 g
Corrugated board up to 6 mm
CE & ISO9001 certified

Get a Free Quote Email Us

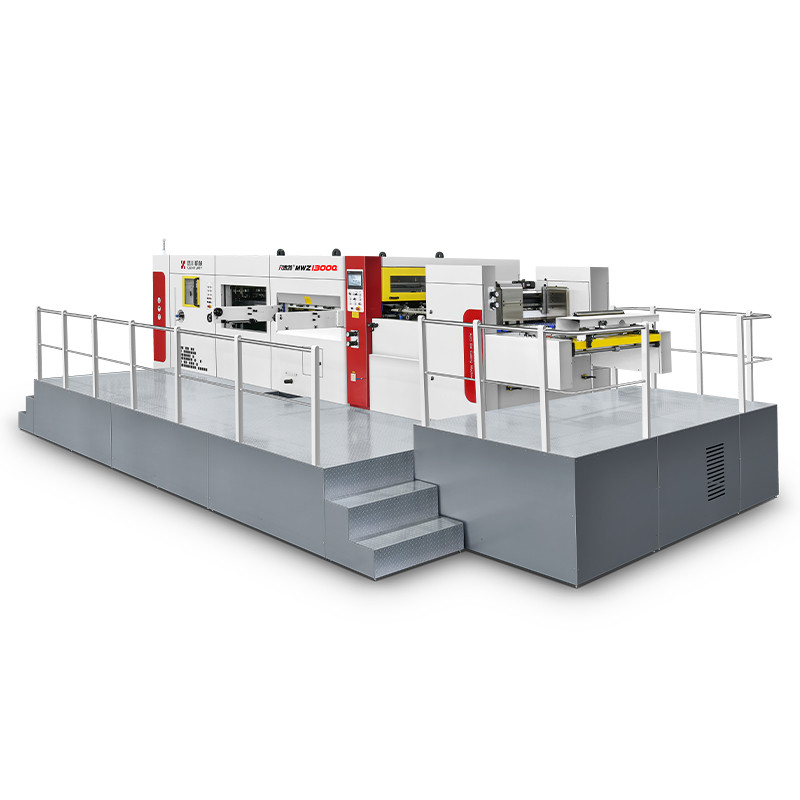

Fast MZ1060/1300/1450/1670QS top feeder automatic die cutting machine with stripping section - front view

Best-selling model • CE Certified • ISO9001

8,000 s/hMax speed (MZ1060)
±0.1mmCutting precision
1670mmMax sheet width (1670QS)
400×10&sup4;NMax pressure (1670QS)
90-2000gCarton board stock
Top feederScratch-free feeding

Product Overview

A High-Speed Top Feeder Automatic Die Cutter with In-Line Stripping

The Fast MZ QS series (MZ1060, MZ1060Q, MZ1300QS, MWZ1450QS, MWZ1670QS) is a top feeder fully automatic die cutting machine with stripping section, built for printing and packaging plants that run printed cartons and corrugated boxes at high speed with minimal scratching and maximum uptime.

Why a Top Feeder (Top Suction) Die Cutting Machine?

The top suction feed system lifts sheets from the top of the pile with a high-speed feeder, delivering scratch-free paper feeding that protects the printed surface — a key advantage when cutting printed cartons and laminated corrugated board. Combined with the in-line stripping section, sheets are fed, die cut, creased, stripped and delivered in one fully automatic pass.

Five Models, One Family

MZ1060 / MZ1060Q — max sheet 1060×760 mm, top speed 8,000 sheets/h. MZ1300QS — max sheet 1330×980 mm at 6,500 sheets/h. MWZ1450QS — max sheet 1480×1080 mm at 6,000 sheets/h. MWZ1670QS — the largest format, max sheet 1670×1260 mm with 400×10&sup4;N cutting pressure.

Carton & Corrugated in One Machine

The QS series processes carton board from 90–2000 g (by model) and corrugated board up to 6 mm, with cutting precision from ±0.1 mm — making it a versatile choice for both folding carton and corrugated box plants.

Key Features

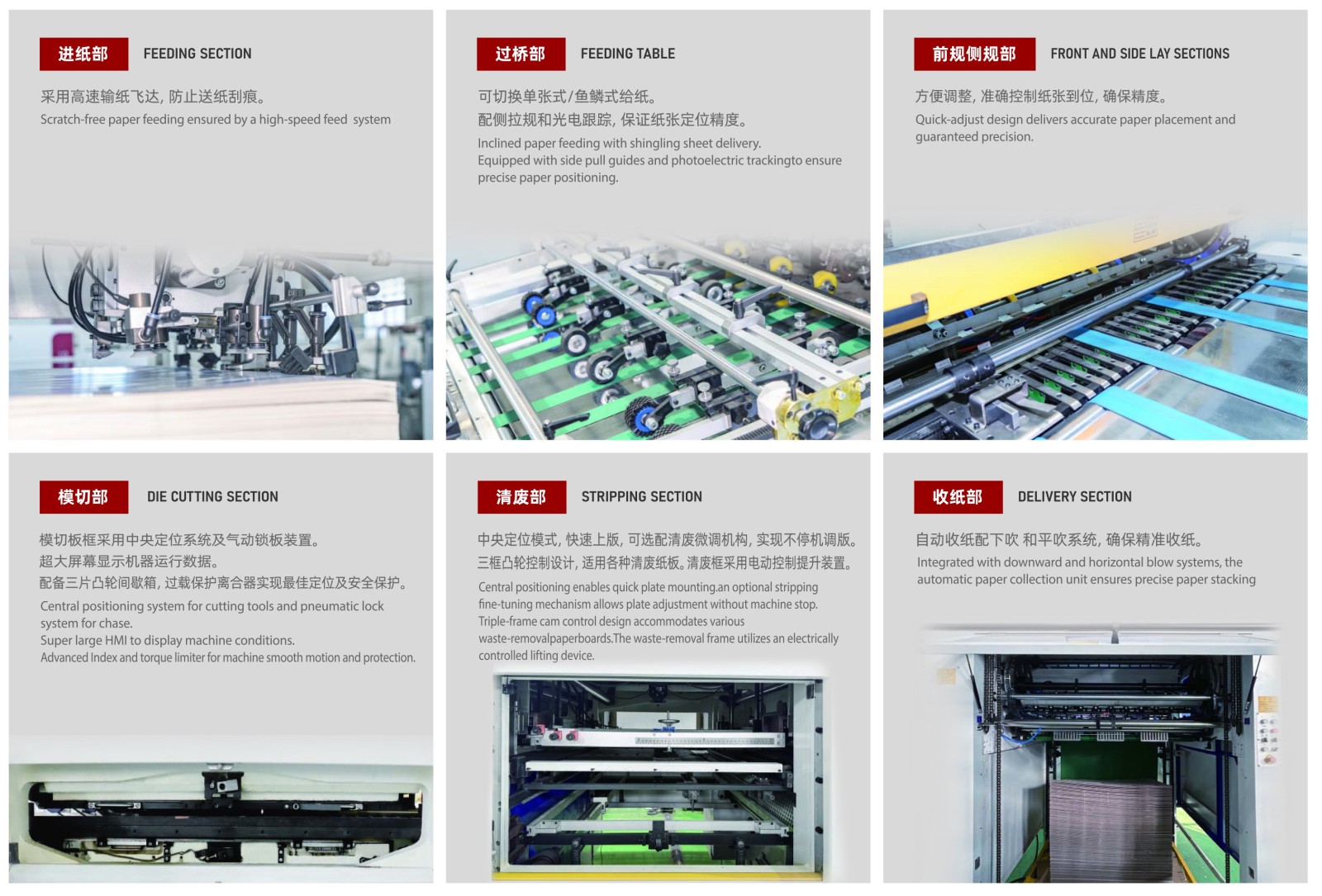

Features of the MZ QS Series Top Feeder Die Cutting Machine

Six precision-engineered sections that deliver high speed, scratch-free feeding and reliable in-line stripping.

01 / FEEDING

Top Suction Feeding Section

High-speed top suction feed system lifts sheets from the top of the pile, ensuring scratch-free paper feeding that protects the printed surface.

02 / FEEDING TABLE

Feeding Table with Side Pull Guides

Inclined paper feeding with switchable single-sheet or shingling sheet delivery. Equipped with side pull guides and photoelectric tracking to ensure precise paper positioning.

03 / REGISTER

Front and Side Lay Sections

Quick-adjust design delivers accurate paper placement and guaranteed precision on every sheet.

04 / DIE CUTTING

Die Cutting Section

Central positioning system for cutting tools and pneumatic lock system for chase. Super large HMI displays machine conditions. Advanced index and torque limiter ensure smooth motion and overload protection.

05 / STRIPPING

Stripping Section

Central positioning enables quick plate mounting; an optional stripping fine-tuning mechanism allows plate adjustment without stopping the machine. Triple-frame cam control accommodates various waste-removal paperboards, with an electrically controlled lifting device for the waste-removal frame.

06 / DELIVERY

Automatic Delivery Section

Integrated with downward and horizontal blow systems, the automatic paper collection unit ensures precise paper stacking, ready for the next production step.

Working Process

From Sheet Feeding to Clean, Ready-to-Stack Blanks

One fully automatic pass replaces the traditional die cutting plus manual stripping workflow.

Top Suction Feeding

Sheets are lifted from the top of the pile by the high-speed top suction feeder and aligned by side pull guides with photoelectric tracking — no scratching, precise register.

Die Cutting & Creasing

The die cutting section applies up to 400×10&sup4;N of cutting pressure at up to 8,000 sheets/h, cutting and creasing the blank to from ±0.1 mm precision.

In-Line Stripping

The triple-frame cam control stripping section removes waste automatically from every sheet — no manual stripping labor, clean blanks in a single pass.

Precise Delivery

Down-blow and flat-blow systems guide every sheet into a precise stack, ready for folding, gluing or palletizing.

Video

Watch the Automatic Die Cutting Machine in Action

Official machine running video of the Fast die cutting series - feeding, die cutting, stripping and delivering in one continuous pass.

Technical Specifications

MZ1060/1300/1450/1670QS - Top Feeder Die Cutting Machine Specifications

Compare all five top feeder models to match your maximum sheet size, material and production speed requirements. Data exactly per the 2026 FAST brochure.

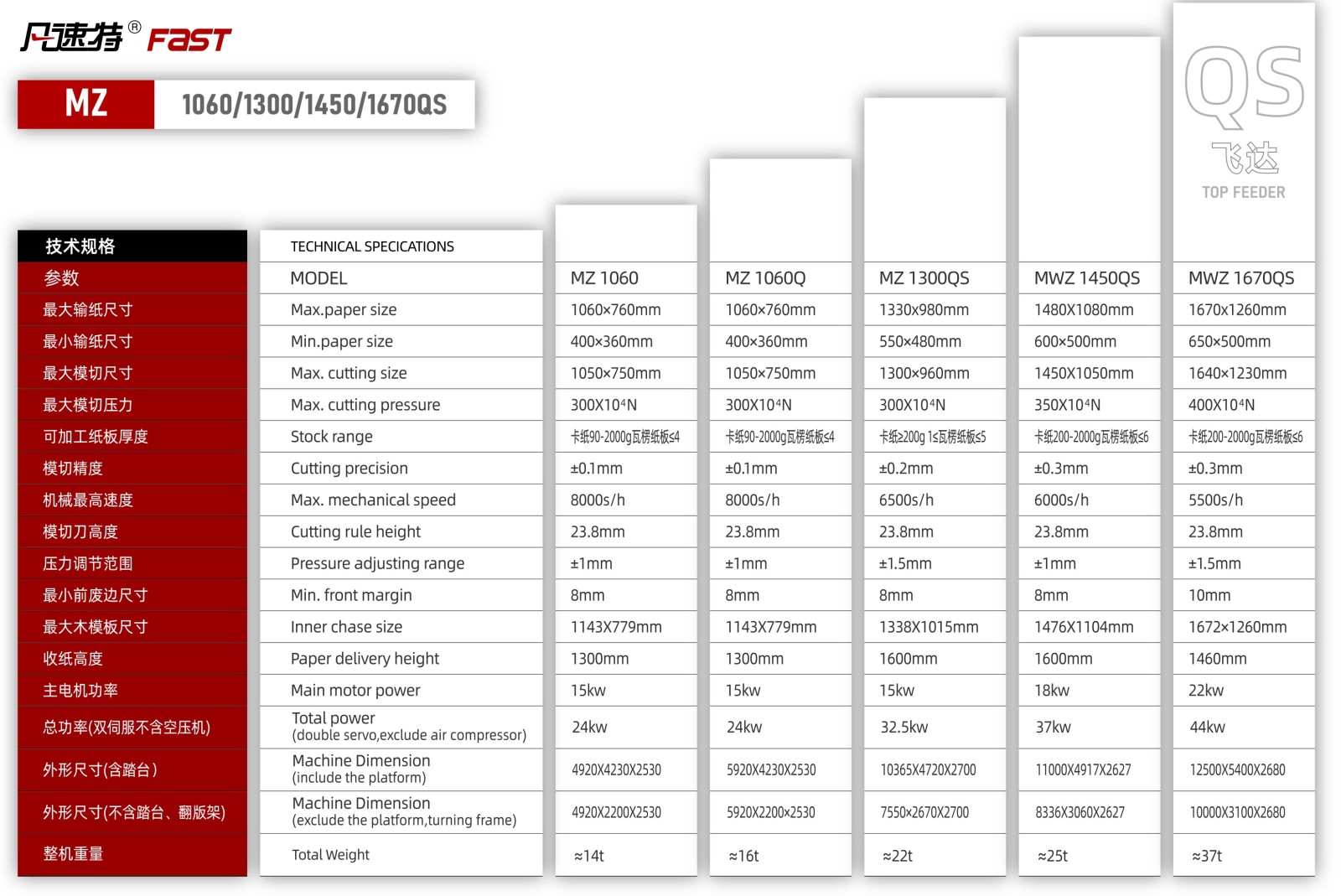

MZ1060/1300/1450/1670QS top feeder automatic flatbed die cutting machine with stripping section - main parameters
Parameter	MZ 1060	MZ 1060Q	MZ 1300QS	MWZ 1450QS	MWZ 1670QS
Max. paper size	1060x760 mm	1060x760 mm	1330x980 mm	1480x1080 mm	1670x1260 mm
Min. paper size	400x360 mm	400x360 mm	550x480 mm	600x500 mm	650x500 mm
Max. cutting size	1050x750 mm	1050x750 mm	1300x960 mm	1450x1050 mm	1640x1230 mm
Max. cutting pressure	300x10&sup4;N	300x10&sup4;N	300x10&sup4;N	350x10&sup4;N	400x10&sup4;N
Stock range	Carton board 90-2000 g; corrugated board ≤4 mm	Carton board 90-2000 g; corrugated board ≤4 mm	Carton board ≥200 g; 1≤corrugated board≤5 mm	Carton board 200-2000 g; corrugated board ≤6 mm	Carton board 200-2000 g; corrugated board ≤6 mm
Cutting precision	±0.1 mm	±0.1 mm	±0.2 mm	±0.3 mm	±0.3 mm
Max. mechanical speed	8000 s/h	8000 s/h	6500 s/h	6000 s/h	5500 s/h
Cutting rule height	23.8 mm	23.8 mm	23.8 mm	23.8 mm	23.8 mm
Pressure adjusting range	±1 mm	±1 mm	±1.5 mm	±1 mm	±1.5 mm
Min. front margin	8 mm	8 mm	8 mm	8 mm	10 mm
Inner chase size	1143x779 mm	1143x779 mm	1338x1015 mm	1476x1104 mm	1672x1260 mm
Paper delivery height	1300 mm	1300 mm	1600 mm	1600 mm	1460 mm
Main motor power	15 kW	15 kW	15 kW	18 kW	22 kW
Total power (double servo, excl. air compressor)	24 kW	24 kW	32.5 kW	37 kW	44 kW
Machine dimension (incl. platform)	4920x4230x2530	5920x4230x2530	10365x4720x2700	11000x4917x2627	12500x5400x2680
Machine dimension (excl. platform, turning frame)	4920x2200x2530	5920x2200x2530	7550x2670x2700	8336x3060x2627	10000x3100x2680
Total weight	≈14 t	≈16 t	≈22 t	≈25 t	≈37 t

Specifications are quoted exactly from the 2026 FAST brochure. Specifications may be adjusted without prior notice - confirm the final configuration for your board type and die-cutting size with our engineers before ordering.

Applications

Applications & Suitable Materials

The MZ QS series top feeder die cutting machine with stripping section handles both printed cartons and corrugated boxes across the packaging chain.

Carton board (90-2000 g)
Corrugated board
Folding cartons
Food, beverage & fresh produce
Daily use & groceries
Alcohol & tobacco
Electronics & appliances
Pharmaceutical & health products
Logistics & e-commerce
Building materials & home furnishing
Pet supplies
RP hollow board

Optional Configurations

Tailor the Machine to Your Production Line

Stripping Fine-Tuning Mechanism

Optional fine-tuning mechanism allows stripping plate adjustment without stopping the machine, maximizing uptime during long production runs.

Automatic High Pile & Batch Delivery

Optional automatic high pile and batch delivery dual-function device with pneumatic kick knock-off board, for continuous production from feed to stack.

Mirror Version — Two Machines, One Operator

Mirror-version die cutter station allows two die cutters to share one chase changer and some operation steps, reducing space cost; one operator can run both machines on separate jobs.

Production Management Integration & Remote Service

The machine can be integrated with production management systems for digital management; remote maintenance and equipment upgrade services are available.

Why Buy Direct from the Manufacturer

Shandong Century Machinery - Your Die Cutting Machine Manufacturer

Buying a large-format flatbed die cutter is a long-term investment. Here is what 7,000+ customers in 70+ countries rely on.

ISO9001/CEPlus CCC & RoHS certified

120+Various patents (21 invention + 87 utility model)

70+Countries served worldwide

7,000+Customers with global support

Shandong Century Machinery (Xinchuan) is a national high-tech enterprise and a Shandong Province specialized & innovative "Little Giant", holding 118 independent intellectual property rights and recognized as a Shandong Provincial Industrial Design Center. Its 40,000 m² plant employs over 300 staff, including more than 50 R&D engineers.

Get Your Machine Quotation Now

FAQ

Frequently Asked Questions

Common questions from packaging plants buying top feeder automatic die cutting machines with stripping section. Keep this section in sync with the FAQPage schema in the page head.

What materials can the MZ QS series top feeder die cutting machine process?

The MZ QS series handles both carton board and corrugated board: MZ1060 and MZ1060Q process carton board 90-2000 g with corrugated board up to 4 mm; MZ1300QS processes carton board from 200 g with corrugated board 1-5 mm; MWZ1450QS and MWZ1670QS process carton board 200-2000 g with corrugated board up to 6 mm.

What is the advantage of a top feeder (top suction feeder) die cutting machine?

A top feeder uses a high-speed top suction feed system that lifts sheets from the top of the pile, delivering scratch-free feeding and protecting the printed surface. It is ideal for high-speed production of printed cartons and corrugated boxes, with feed speeds up to 8,000 sheets/h on the MZ1060 models.

Which model should I choose - MZ1060, MZ1300QS, MWZ1450QS or MWZ1670QS?

Choose by sheet size and speed: MZ1060/MZ1060Q handle max 1060 x 760 mm sheets at the highest speed of 8,000 sheets/h; MZ1300QS handles 1330 x 980 mm at 6,500 sheets/h; MWZ1450QS handles 1480 x 1080 mm at 6,000 sheets/h; MWZ1670QS handles the largest format, 1670 x 1260 mm, with max cutting pressure of 400 x 10^4 N at 5,500 sheets/h.

What is your warranty policy?

We offer a 12-month warranty from the shipping date, covering manufacturing defects. During this period, we provide repair, replacement or refund services according to our "three guarantees" policy.

Do you send engineers for on-site installation and commissioning?

Yes. We dispatch qualified service engineers to your facility to perform full machine installation, calibration and commissioning. They ensure your MZ QS series die cutter is set up correctly and running at optimal performance before handover, and provide on-site operator training covering operation, daily maintenance, troubleshooting and safety procedures.

What are your payment and shipping terms?

We operate on a standard deposit plus balance before shipment structure. Shipping terms are flexible - FOB, CIF or EXW based on your preference. We partner with reliable freight forwarders to ensure safe and timely delivery worldwide.
