The "QUICKRUN" short-order king of flatbed die cutting — a fully automatic die cutting machine with ZHI intelligence for corrugated board (1–8.5 mm). One-key setup recalls any saved job in seconds; the quick-loading blade version changes plates with a single push. Two models: MWZ1450W and MWZ1620W.
The Trustar MWZ W*ZHI series (MWZ1450W, MWZ1620W) is a fully automatic flatbed die cutting machine built for speed of changeover: fast order processing, quick board replacement, a small footprint — and expert in super orders. Ideal for corrugated board plants that run many short orders per day.
ZHI intelligence enables automated one-key setup and job recall: store up to 10,000 jobs, select any saved order, and 16 servo motors automatically reposition the machine to the stored working positions. The quick-loading blade version adds a central-positioning push-pull clamp — one push completes the plate change. Short runs stop costing you time.
MWZ1450W — max sheet 1480×1080 mm, top speed 5,000 sheets/h. MWZ1620W — max sheet 1650×1210 mm at 4,800 sheets/h with 400×10&sup4;N cutting pressure.
The European-patented cassette feeder handles even warped board with zero-scratch feeding; the "N+1" die steel plate undergoes a special treatment that multiplies durability and stability; and the quick tray in/out delivery section automates pallet feeding and stack discharge — upgradable to a multi-tray storage warehouse system.

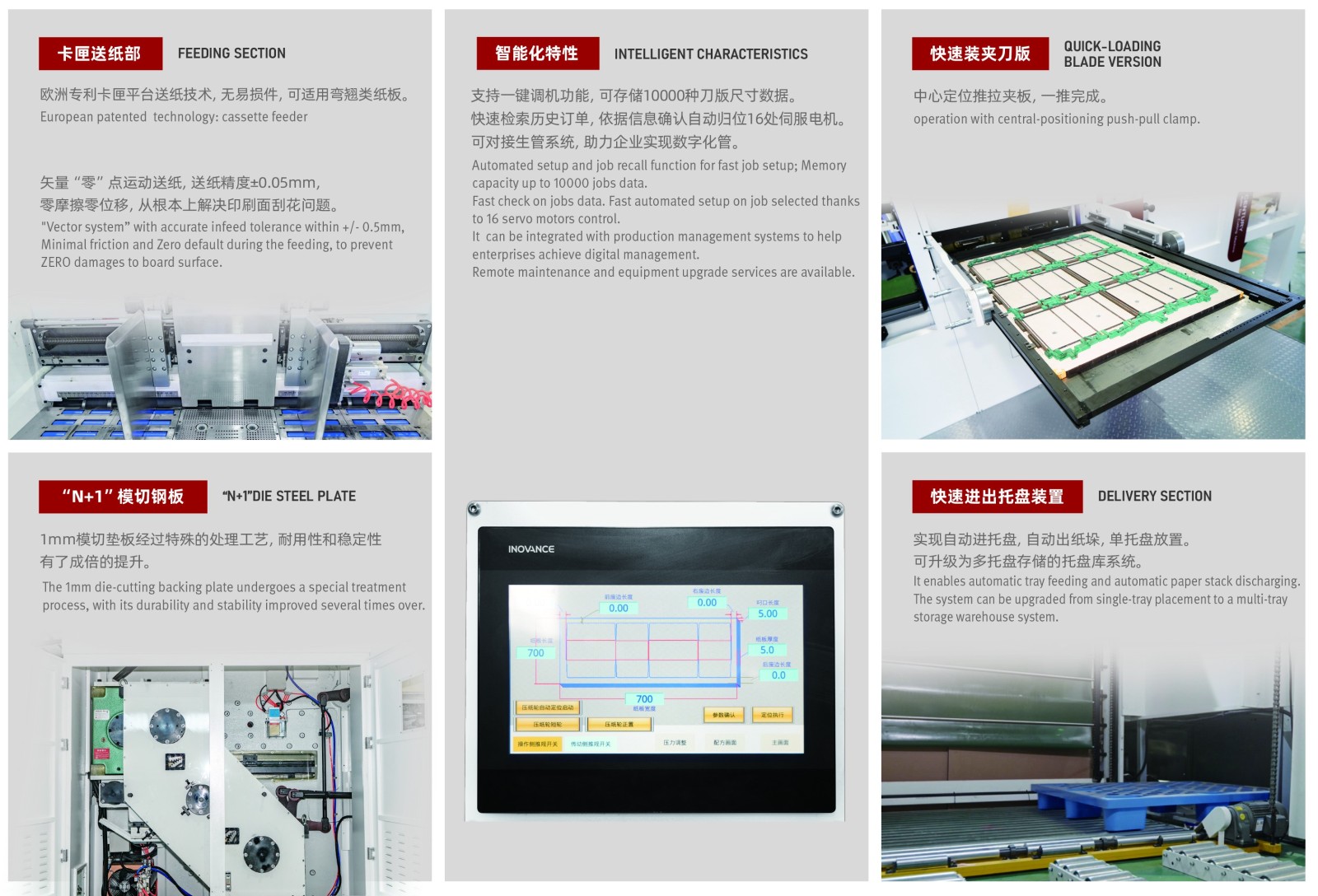

Six technologies that make the W*ZHI the fastest die cutter to change over in its class.
Automated setup and job recall function for fast job setup; memory capacity up to 10,000 jobs data with fast check on jobs data. Fast automated setup on job selected thanks to 16 servo motors control. Can be integrated with production management systems; remote maintenance and equipment upgrade services available.
Central-positioning push-pull clamp for the cutting die: one push completes the plate change — the fastest blade changeover for short-run production.
No consumable parts, and suitable for warped boards. "Vector system" zero-point motion feeding minimizes friction and displacement, fundamentally preventing scratching of the printed surface.
The 1 mm die-cutting backing plate undergoes a special treatment process, with its durability and stability improved several times over — longer service life between replacements.
Super large HMI touchscreen displays machine conditions in real time, with one-touch parameter confirmation and pressure adjustment for fast job setup.
Automatic tray feeding and automatic paper stack discharging with single-tray placement. The system can be upgraded from single-tray placement to a multi-tray storage warehouse system.
The complete workflow designed around fast changeover and reliable production.
Select any saved job from up to 10,000 stored configurations; 16 servo motors automatically reposition the machine. One push loads the cutting die via the push-pull clamp.
Corrugated board sheets are fed automatically by the European-patented cassette feeder with zero-point motion — scratch-free, even with warped boards.
The die cutting section applies up to 400×10&sup4;N at up to 5,000 sheets/h, cutting and creasing the blank to ±0.5 mm precision.
Finished stacks discharge automatically onto trays; start the next order with a single keypress — minimal downtime between jobs.

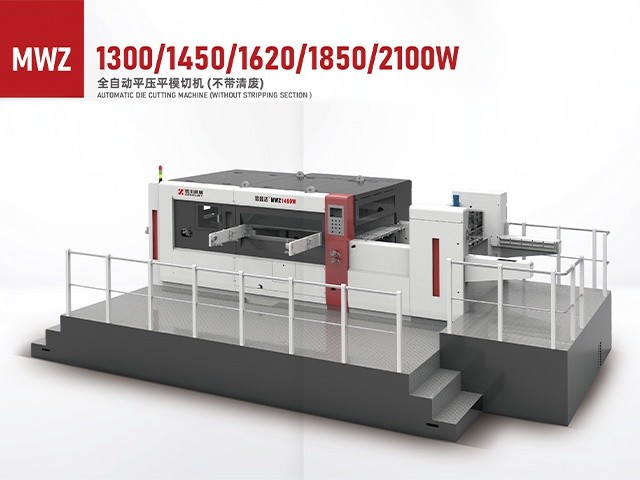

Official machine running video of the MWZ large-format die cutting family (same family as the W series).

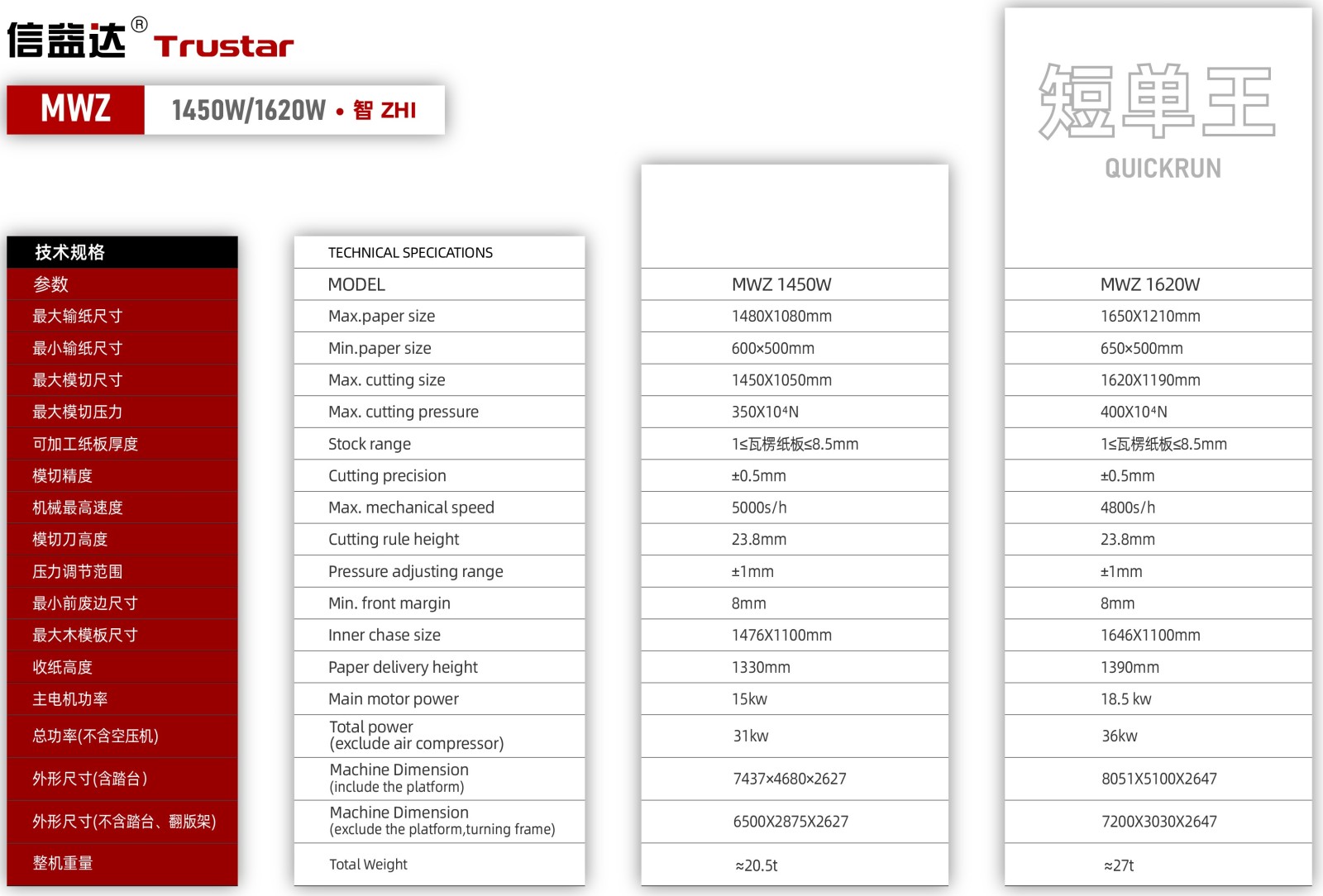

Compare the two models to match your maximum sheet size and production speed requirements. Data exactly per the 2026 FAST brochure.
Specifications are quoted exactly from the 2026 FAST brochure. Specifications may be adjusted without prior notice - confirm the final configuration for your board type and die-cutting size with our engineers before ordering.
The MWZ W*ZHI die cutting machine serves corrugated board plants that value fast changeover — from short-run multi-variety orders to super orders.
The delivery system can be upgraded from single-tray placement to a multi-tray storage warehouse system, enabling longer unmanned operation between pallet changes.
Mirror-version die cutter station allows two die cutters to share one chase changer and some operation steps, reducing space cost; one operator can run both machines on separate jobs.
The machine can be integrated with production management systems for digital management; remote maintenance and equipment upgrade services are available.
Tell us your order mix, board grade and line layout - our engineers will configure the machine, feeding and delivery options to match your workflow.
Buying a flatbed die cutter is a long-term investment. Here is what 7,000+ customers in 70+ countries rely on.
Shandong Century Machinery (Xinchuan) is a national high-tech enterprise and a Shandong Province specialized & innovative "Little Giant", holding 118 independent intellectual property rights and recognized as a Shandong Provincial Industrial Design Center. Its 40,000 m² plant employs over 300 staff, including more than 50 R&D engineers.
Common questions from packaging plants buying automatic die cutting machines. Keep this section in sync with the FAQPage schema in the page head.
Tell us your sheet size, material and target output - our engineers reply within 24 hours on business days.
Tip: the official inquiry form on this page also delivers your message directly to our sales team.
