Turstar MWZ1300/1450/1620/1850/2100W automatic die cutting machine(without stripping section)

›

‹

›

Turstar MWZ1300/1450/1620/1850/2100W automatic die cutting machine(without stripping section)
MWZ1300W / 1450W / 1620W / 1850W / 2100W series fully automatic flatbed die cutters with stripping section. Designed for extra-wide corrugated board processing. Max mechanical speed up to 5,000 sheets/h, cutting precision ±0.5mm. Max sheet sizes from 1300×960mm up to 2100×1450mm. Stock range 1–8.5mm corrugated. Ideal for large-format packaging and heavy-duty industrial boxes. CE certified.
Inquiry
MWZ1300/1450/1620/1850/2100W Die Cutting Machine (No Stripping)

Trustar MWZ1300/1450/1620/1850/2100W Automatic Die Cutting Machine (Without Stripping Section)

A fully automatic flatbed die cutting and creasing machine for corrugated board (1–8.5 mm), offered without a stripping section for a more economical, straightforward production setup. Five models from MWZ1300W to MWZ2100W cover sheet sizes from 1330×980 mm up to 2110×1520 mm — with cutting pressure up to 500×10&sup4;N.

  • Up to 5,200 sheets/h (1300W)
  • Max cutting pressure 500×10&sup4;N (2100W)
  • Max sheet 2110×1520 mm (2100W)
  • ±0.5 mm cutting precision
  • Board stock 1–8.5 mm
  • CE & ISO9001 certified
Trustar MWZ1300/1450/1620/1850/2100W automatic die cutting machine without stripping section - front view
Best-selling model • CE Certified • ISO9001
  • 5,200 s/hMax speed (1300W)
  • 500×10&sup4;NMax pressure (2100W)
  • 2110mmMax sheet width (2100W)
  • ±0.5mmCutting precision
  • 8.5mmMax board thickness
  • CassetteEuropean patented feeder
Product Overview

An Economical Automatic Flatbed Die Cutter for Corrugated Board

The Trustar MWZ W series (MWZ1300W, MWZ1450W, MWZ1620W, MWZ1850W, MWZ2100W) is a fully automatic die cutting and creasing machine without a stripping section — the cost-effective choice for corrugated board plants that handle waste removal in downstream processes or by manual stripping.

Why Choose a Die Cutting Machine without Stripping Section?

Not every plant needs an integrated stripping station. The W series focuses investment on what matters most — high-pressure, high-precision die cutting and creasing at up to 5,200 sheets/h — while keeping the machine simpler, easier to operate and more economical. Sheets are fed, die cut and creased automatically, then delivered cleanly for your existing waste-removal process.

Five Models, One Family

MWZ1300W — max sheet 1330×980 mm, top speed 5,200 sheets/h. MWZ1450W — max sheet 1480×1080 mm at 5,000 sheets/h. MWZ1620W — max sheet 1650×1210 mm at 4,800 sheets/h. MWZ1850W — max sheet 1880×1420 mm at 4,500 sheets/h. MWZ2100W — the largest format, max sheet 2110×1520 mm with 500×10&sup4;N cutting pressure.

Built on Proven Trustar Technology

The W series combines a European-patented cassette feeder, a heavy-duty die cutting section with central positioning and pneumatic chase lock, and a two-in-one delivery system — delivering consistent ±0.5 mm precision across all five formats.

Key Features

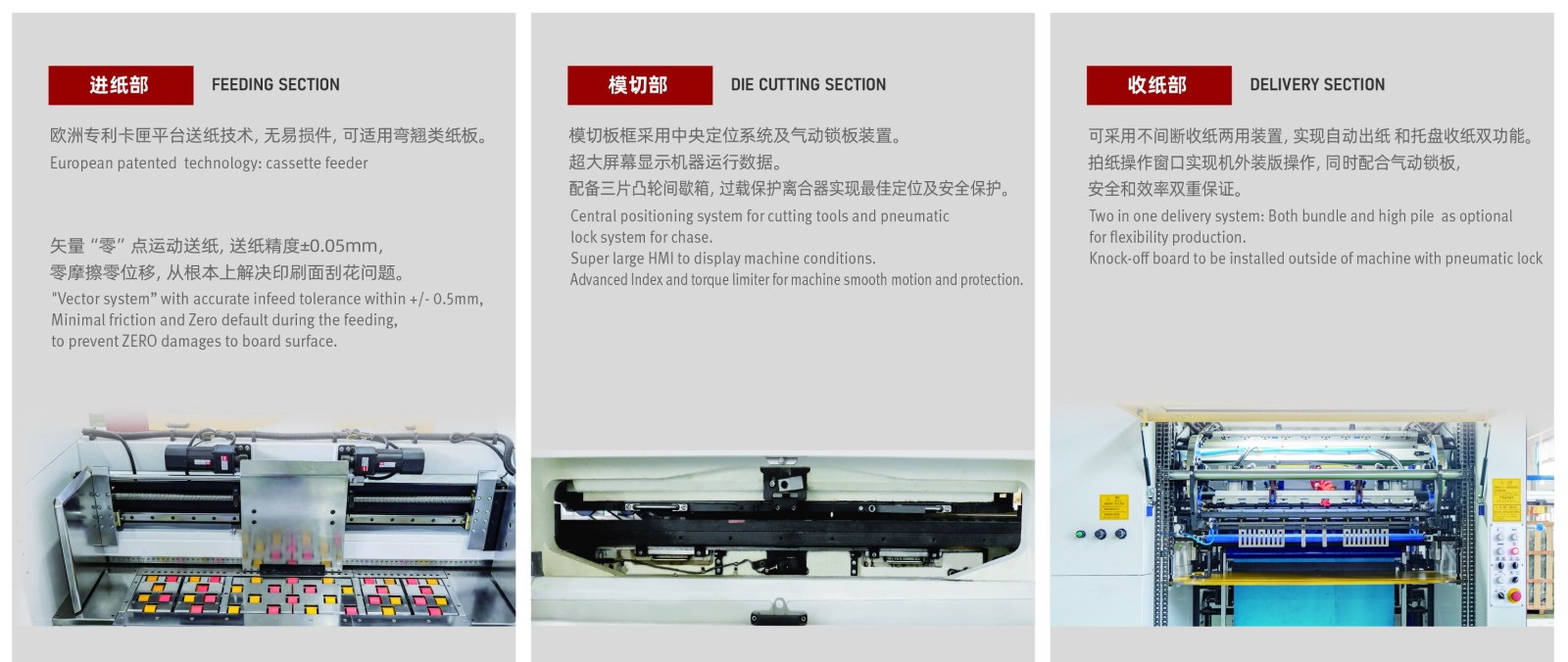

Features of the MWZ W Series Automatic Die Cutting Machine

Three core sections engineered for reliable high-pressure die cutting of corrugated board.

01 / FEEDING

European Patented Cassette Feeder

Reliable and adaptable cassette feeder technology for various board types. The "Vector system" delivers accurate infeed within ±0.5 mm tolerance with minimal friction and zero damage to the board surface.

02 / DIE CUTTING

Heavy-Duty Die Cutting Section

Central positioning system for cutting tools and pneumatic lock system for chase. Super large HMI displays machine conditions. Advanced index and torque limiter ensure smooth motion and overload protection.

03 / DELIVERY

Two-in-One Delivery Section

The "two in one" delivery system allows both bundle and high pile delivery as options, with a knock-off board installed outside the machine using a pneumatic lock — for clean, ready-to-process stacks.

Working Process

From Sheet Feeding to Clean, Ready-to-Process Output

A simple, automatic workflow for high-volume corrugated board production.

Automatic Sheet Feeding

Corrugated board sheets are fed automatically by the cassette feeder with "Vector system" register accuracy, protecting the board surface.

Die Cutting & Creasing

The die cutting section applies up to 500×10&sup4;N of cutting pressure at up to 5,200 sheets/h, cutting and creasing the blank to ±0.5 mm precision.

Automatic Delivery

Cut blanks are delivered in bundles or high piles via the two-in-one delivery system, ready for your stripping and finishing process.

Waste Removal (Your Process)

Because the W series has no stripping section, waste is removed in your existing downstream process — manual stripping, a separate stripper, or in-line finishing.

Video

Watch the Automatic Die Cutting Machine in Action

Official machine running video of the Fast die cutting series - feeding, die cutting and delivering in one continuous pass.

Technical Specifications

MWZ1300/1450/1620/1850/2100W - Die Cutting Machine Specifications

Compare all five models to match your maximum sheet size, cutting pressure and production speed requirements. Data exactly per the 2026 FAST brochure.

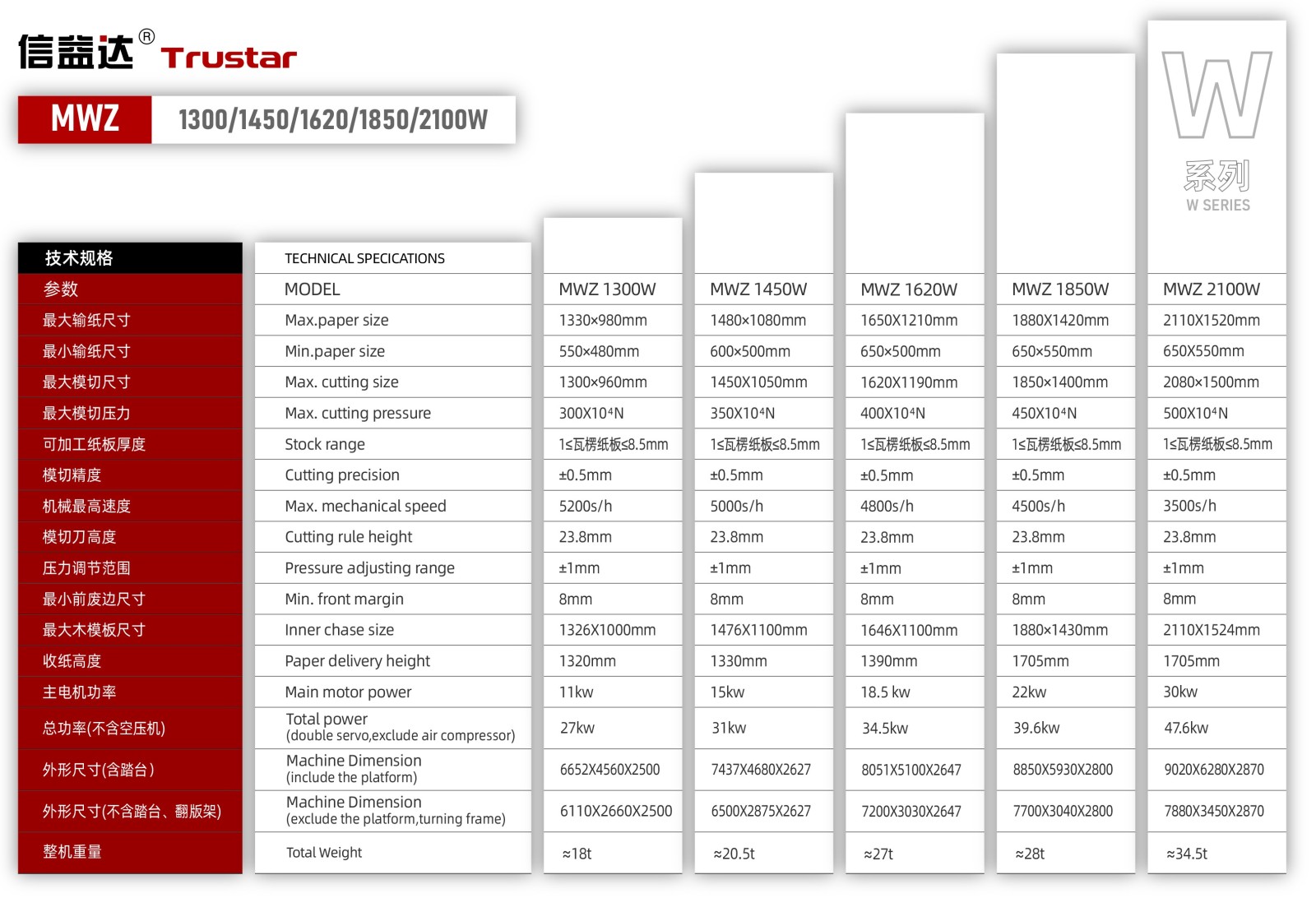

MWZ1300/1450/1620/1850/2100W (W series) automatic flatbed die cutting machine without stripping section - main parameters
ParameterMWZ 1300WMWZ 1450WMWZ 1620WMWZ 1850WMWZ 2100W
Max. paper size1330x980 mm1480x1080 mm1650x1210 mm1880x1420 mm2110x1520 mm
Min. paper size550x480 mm600x500 mm650x500 mm650x550 mm650x550 mm
Max. cutting size1300x960 mm1450x1050 mm1620x1190 mm1850x1400 mm2080x1500 mm
Max. cutting pressure300x10&sup4;N350x10&sup4;N400x10&sup4;N450x10&sup4;N500x10&sup4;N
Stock range1≤corrugated board≤8.5 mm1≤corrugated board≤8.5 mm1≤corrugated board≤8.5 mm1≤corrugated board≤8.5 mm1≤corrugated board≤8.5 mm
Cutting precision±0.5 mm±0.5 mm±0.5 mm±0.5 mm±0.5 mm
Max. mechanical speed5200 s/h5000 s/h4800 s/h4500 s/h3500 s/h
Cutting rule height23.8 mm23.8 mm23.8 mm23.8 mm23.8 mm
Pressure adjusting range±1 mm±1 mm±1 mm±1 mm±1 mm
Min. front margin8 mm8 mm8 mm8 mm8 mm
Inner chase size1326x1000 mm1476x1100 mm1646x1100 mm1880x1430 mm2110x1524 mm
Paper delivery height1320 mm1330 mm1390 mm1705 mm1705 mm
Main motor power11 kW15 kW18.5 kW22 kW30 kW
Total power (double servo, excl. air compressor)27 kW31 kW34.5 kW39.6 kW47.6 kW
Machine dimension (incl. platform)6652x4560x25007437x4680x26278051x5100x26478850x5930x28009020x6280x2870
Machine dimension (excl. platform, turning frame)6110x2660x25006500x2875x26277200x3030x26477700x3040x28007880x3450x2870
Total weight≈18 t≈20.5 t≈27 t≈28 t≈34.5 t

Specifications are quoted exactly from the 2026 FAST brochure. Specifications may be adjusted without prior notice - confirm the final configuration for your board type and die-cutting size with our engineers before ordering.

Applications

Applications & Suitable Materials

The MWZ W series automatic die cutting machine without stripping section serves corrugated board producers across the packaging chain.

  • Corrugated board (1–8.5 mm)
  • Carton board
  • RP hollow board
  • Food, beverage & fresh produce
  • Daily use & groceries
  • Alcohol & tobacco
  • Electronics & appliances
  • Industrial & auto parts
  • Logistics & e-commerce
  • Building materials & home furnishing
  • Pet supplies
  • Furniture & appliance packaging
Die cutting applications across 10 industries - corrugated board packaging products
Optional Configurations

Tailor the Machine to Your Production Line

Two-in-One Delivery: Bundle or High Pile

The two-in-one delivery system offers both bundle and high pile delivery options, with a knock-off board installed outside the machine using a pneumatic lock.

Mirror Version — Two Machines, One Operator

Mirror-version die cutter station allows two die cutters to share one chase changer and some operation steps, reducing space cost; one operator can run both machines on separate jobs.

Production Management Integration & Remote Service

The machine can be integrated with production management systems for digital management; remote maintenance and equipment upgrade services are available.

Customized Configurations

Tell us your board grade, sheet size and line layout - our engineers will configure the W series machine, delivery system and auxiliary equipment to match your workflow.

Why Buy Direct from the Manufacturer

Shandong Century Machinery - Your Die Cutting Machine Manufacturer

Buying a large-format flatbed die cutter is a long-term investment. Here is what 7,000+ customers in 70+ countries rely on.

ISO9001/CEPlus CCC & RoHS certified
120+Various patents (21 invention + 87 utility model)
70+Countries served worldwide
7,000+Customers with global support

Shandong Century Machinery (Xinchuan) is a national high-tech enterprise and a Shandong Province specialized & innovative "Little Giant", holding 118 independent intellectual property rights and recognized as a Shandong Provincial Industrial Design Center. Its 40,000 m² plant employs over 300 staff, including more than 50 R&D engineers.

Get Your Machine Quotation Now

FAQ

Frequently Asked Questions

Common questions from packaging plants buying automatic die cutting machines without stripping section. Keep this section in sync with the FAQPage schema in the page head.

What materials can the MWZ W series die cutting machine process?
All five models (MWZ1300W, MWZ1450W, MWZ1620W, MWZ1850W, MWZ2100W) process corrugated board from 1 mm to 8.5 mm thick at ±0.5 mm cutting precision.
What is the difference between this machine and one with a stripping section?
This W series is an automatic die cutting and creasing machine without a stripping section, which makes it a more economical choice for plants that already have waste removal handled in downstream processes or by manual stripping. The die cutting section delivers the same high pressure (up to 500 x 10^4 N on the 2100W) and precision, and the two-in-one delivery system offers bundle or high pile delivery options.
Which model should I choose - 1300W, 1450W, 1620W, 1850W or 2100W?
Choose by sheet size and speed: MWZ1300W handles max 1330 x 980 mm sheets at the highest speed of 5,200 sheets/h; MWZ1450W handles 1480 x 1080 mm at 5,000 sheets/h; MWZ1620W handles 1650 x 1210 mm at 4,800 sheets/h; MWZ1850W handles 1880 x 1420 mm at 4,500 sheets/h; MWZ2100W handles the largest format, 2110 x 1520 mm, with max cutting pressure of 500 x 10^4 N at 3,500 sheets/h.
What is your warranty policy?
We offer a 12-month warranty from the shipping date, covering manufacturing defects. During this period, we provide repair, replacement or refund services according to our "three guarantees" policy.
Do you send engineers for on-site installation and commissioning?
Yes. We dispatch qualified service engineers to your facility to perform full machine installation, calibration and commissioning. They ensure your MWZ W series die cutter is set up correctly and running at optimal performance before handover, and provide on-site operator training covering operation, daily maintenance, troubleshooting and safety procedures.
What are your payment and shipping terms?
We operate on a standard deposit plus balance before shipment structure. Shipping terms are flexible - FOB, CIF or EXW based on your preference. We partner with reliable freight forwarders to ensure safe and timely delivery worldwide.
