Hand Angel MWB1300-2500BF Semi-Automatic Die Cutting Machine

Hand Angel MWB1300/1450/1620/1850/2100/2300/2500BF Semi-Automatic Die Cutting Machine

A cost-effective semi-automatic flatbed die cutting machine for corrugated board (1–8.5 mm). Seven models from MWB1300/BF to MWB2500 cover sheet sizes from 1330×980 mm up to 2500×1620 mm — with automatic in-line stripping on BF models, cutting pressure up to 450×10&sup4;N and speeds up to 4,800 sheets/h.

Up to 4,800 sheets/h (1300/BF)
Max cutting pressure 450×10&sup4;N (2500)
Max sheet 2500×1620 mm (2500)
±0.5 mm cutting precision
Board stock 1–8.5 mm
CE & ISO9001 certified

Get a Free Quote Email Us

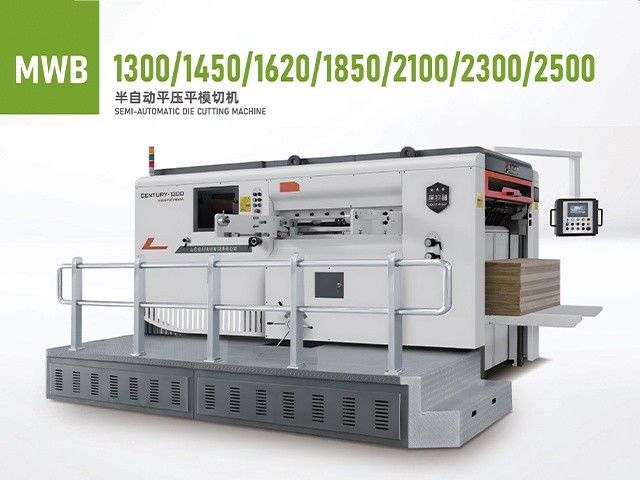

Hand Angel MWB1300-2500BF semi-automatic die cutting machine - front view

Hand Angel Series • CE Certified • ISO9001

4,800 s/hMax speed (1300/BF)
450×10&sup4;NMax pressure (2500)
2500mmMax sheet width (2500)
±0.5mmCutting precision
8.5mmMax board thickness
BFIn-line stripping models

Product Overview

High-Pressure Semi-Automatic Die Cutting at a Smart Investment Cost

The Hand Angel MWB series (MWB1300/BF through MWB2500) is a semi-automatic flatbed die cutting machine that combines manual sheet feeding with automatic die cutting, optional in-line stripping and high-pile delivery — delivering fully automatic-class cutting quality at a significantly lower investment.

The Ideal Step into Automatic Die Cutting

An operator feeds sheets into the front section while the machine handles die cutting, creasing, stripping (BF models) and stacking automatically. This makes the MWB series the perfect upgrade path for plants moving from manual platen presses to automatic production — with the same heavy-duty construction and up to 4,800 sheets/h of mechanical speed.

Seven Models, One Family

MWB1300/BF — max sheet 1330×980 mm, top speed 4,800 sheets/h. MWB1450/BF — 1480×1080 mm at 4,500 sheets/h. MWB1620/BF — 1650×1210 mm at 4,000 sheets/h. MWB1850/BF — 1880×1420 mm at 3,500 sheets/h. MWB2100/BF — 2110×1520 mm at 3,000 sheets/h. MWB2300/BF — 2300×1520 mm at 3,000 sheets/h. MWB2500 — the largest format, max sheet 2500×1620 mm with 450×10&sup4;N cutting pressure.

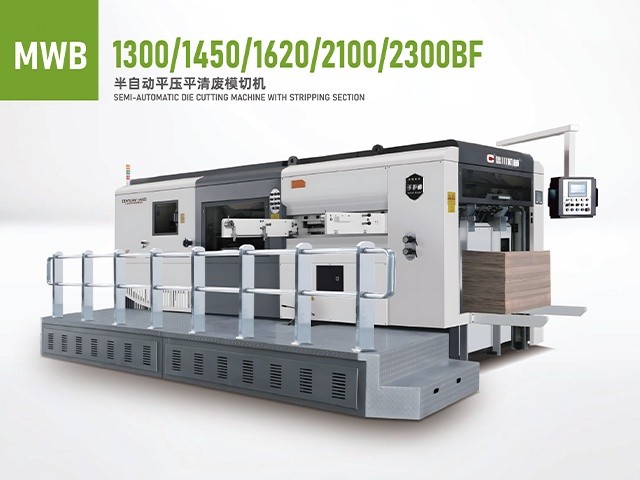

Automatic Stripping on BF Models

The BF models include an automatic stripping section that clears waste from three sides and the center of the sheet using male and female stripping templates — ensuring thorough waste removal without manual stripping labor.

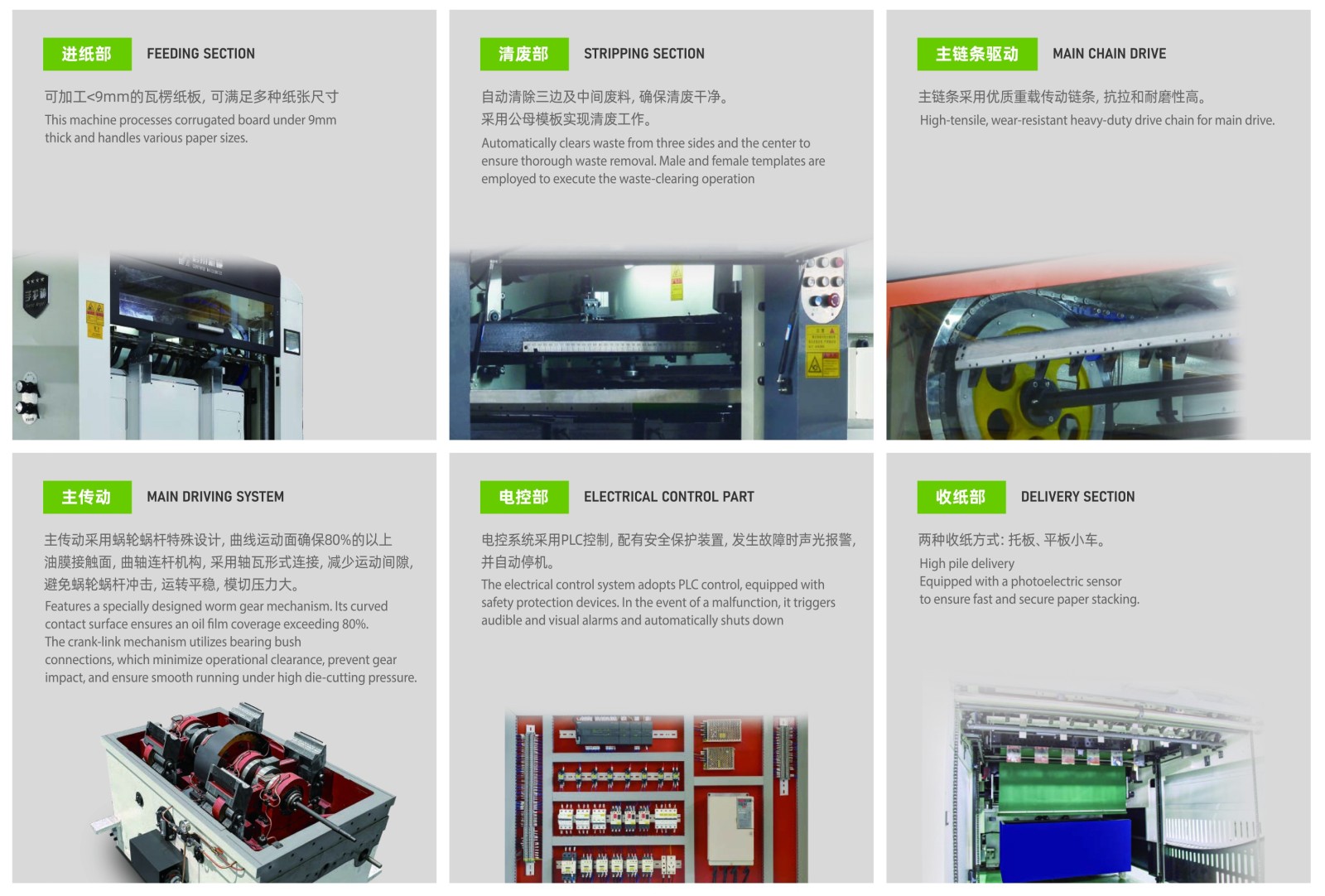

Key Features

Features of the Hand Angel MWB Semi-Automatic Die Cutting Machine

Six engineered sections that deliver automatic-class quality with semi-automatic economy.

01 / FEEDING

Feeding Section

Handles corrugated board up to 9 mm and adapts to various paper formats. The simple feeding system keeps investment low while maintaining reliable sheet delivery into the register.

02 / STRIPPING

Automatic Stripping Section (BF)

Automatically clears waste from three sides and the center of the sheet, ensuring thorough waste removal. Male and female stripping templates are used for reliable stripping operation.

03 / CHAIN DRIVE

Heavy-Duty Main Chain Drive

High-tensile, wear-resistant heavy-duty drive chains ensure smooth, reliable gripper transport through the die cutting and stripping sections.

04 / MAIN DRIVE

Worm-Gear Main Driving System

A specially designed worm gear mechanism with curved-surface contact ensures over 80% oil film coverage. The crankshaft connecting-rod bearing bush minimizes clearance and prevents gear shock, running smoothly under high pressure.

05 / CONTROL

PLC Electrical Control Section

PLC control with complete safety protection devices. In case of a fault, audible and visual alarms trigger and the machine stops automatically for operator safety.

06 / DELIVERY

High-Pile Delivery Section

High-pile delivery equipped with photoelectric sensors ensures fast and safe paper stacking, ready for the next production step.

Working Process

From Sheet Feeding to Clean, Ready-to-Stack Blanks

A simple semi-automatic workflow with automatic die cutting, stripping and delivery.

Manual Sheet Feeding

An operator places sheets one by one into the feeding section — a simple, reliable method that keeps the machine investment low.

Automatic Die Cutting & Creasing

The heavy-duty worm-gear drive applies up to 450×10&sup4;N of pressure at up to 4,800 sheets/h, cutting and creasing to ±0.5 mm precision.

Automatic In-Line Stripping (BF)

On BF models, the stripping section automatically removes waste from three sides and the center using male/female templates — no manual stripping labor.

High-Pile Delivery

Finished products stack automatically in high piles with photoelectric sensor control, ready for the next production step.

Video

Watch the Semi-Automatic Die Cutting Machine in Action

Official machine running video of the Hand Angel MWB series - the same video linked by the QR code on the 2026 FAST brochure.

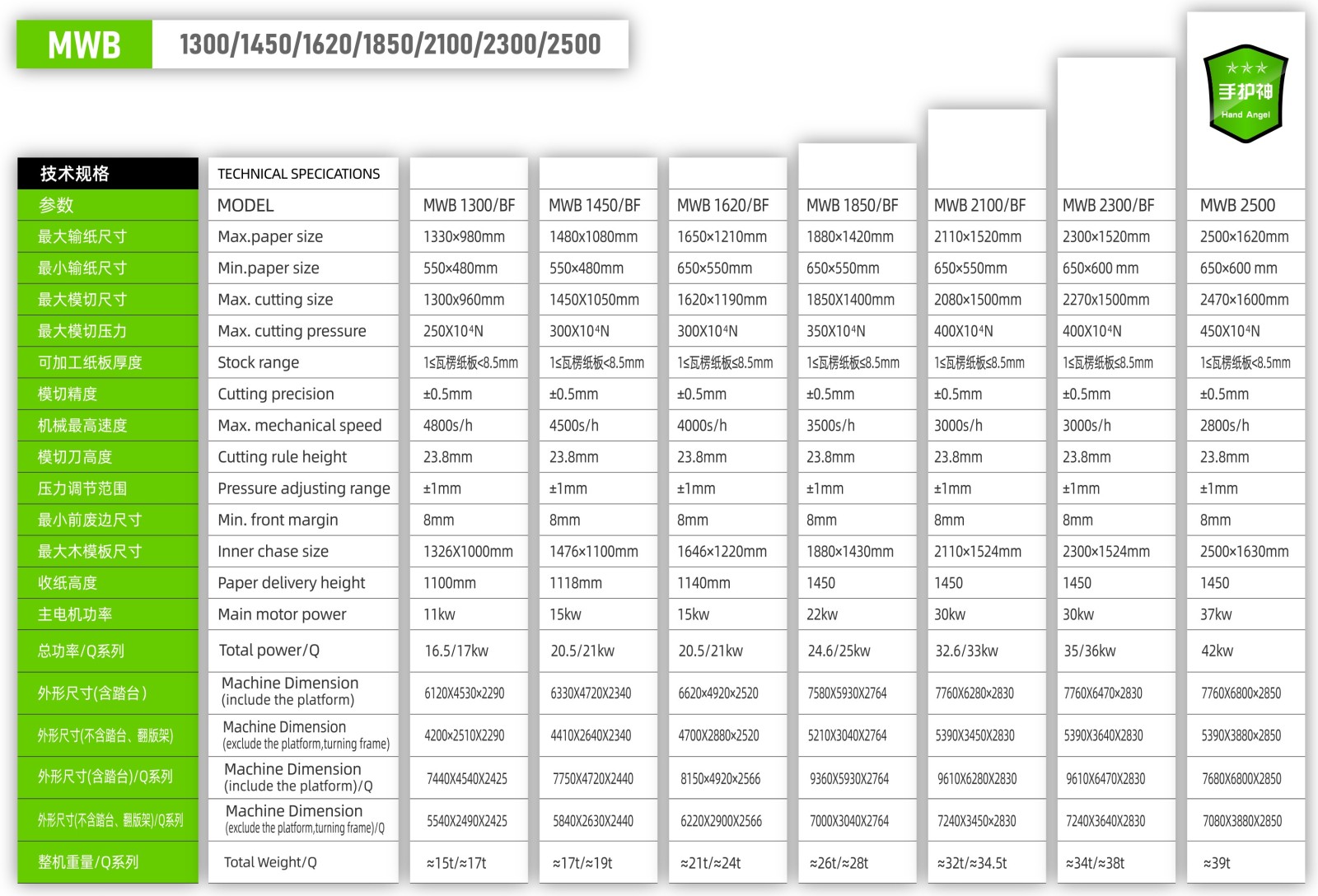

Technical Specifications

MWB1300/1450/1620/1850/2100/2300/2500BF - Semi-Automatic Die Cutting Machine Specifications

Compare all seven models to match your maximum sheet size, cutting pressure and production speed requirements. Data exactly per the 2026 FAST brochure (standard / Q series configurations).

Hand Angel MWB1300/1450/1620/1850/2100/2300/2500BF semi-automatic flatbed die cutting machine - main parameters
Parameter	MWB 1300/BF	MWB 1450/BF	MWB 1620/BF	MWB 1850/BF	MWB 2100/BF	MWB 2300/BF	MWB 2500
Max. paper size	1330x980 mm	1480x1080 mm	1650x1210 mm	1880x1420 mm	2110x1520 mm	2300x1520 mm	2500x1620 mm
Min. paper size	550x400 mm	550x400 mm	650x550 mm	650x550 mm	650x550 mm	650x600 mm	650x600 mm
Max. cutting size	1300x960 mm	1450x1050 mm	1620x1190 mm	1850x1400 mm	2080x1500 mm	2270x1500 mm	2470x1600 mm
Max. cutting pressure	250x10&sup4;N	300x10&sup4;N	300x10&sup4;N	350x10&sup4;N	400x10&sup4;N	400x10&sup4;N	450x10&sup4;N
Stock range	1≤corrugated board<8.5 mm	1≤corrugated board<8.5 mm	1≤corrugated board<8.5 mm	1≤corrugated board<8.5 mm	1≤corrugated board<8.5 mm	1≤corrugated board<8.5 mm	1≤corrugated board<8.5 mm
Cutting precision	±0.5 mm	±0.5 mm	±0.5 mm	±0.5 mm	±0.5 mm	±0.5 mm	±0.5 mm
Max. mechanical speed	4800 s/h	4500 s/h	4000 s/h	3500 s/h	3000 s/h	3000 s/h	2800 s/h
Cutting rule height	23.8 mm	23.8 mm	23.8 mm	23.8 mm	23.8 mm	23.8 mm	23.8 mm
Pressure adjusting range	±1 mm	±1 mm	±1 mm	±1 mm	±1 mm	±1 mm	±1 mm
Min. front margin	8 mm	8 mm	8 mm	8 mm	8 mm	8 mm	8 mm
Inner chase size	1326x1000 mm	1476x1100 mm	1646x1220 mm	1880x1430 mm	2110x1524 mm	2300x1524 mm	2500x1630 mm
Paper delivery height	1100 mm	1118 mm	1140 mm	1450 mm	1450 mm	1450 mm	1450 mm
Main motor power	11 kW	15 kW	15 kW	22 kW	30 kW	30 kW	37 kW
Total power (standard / Q series)	16.5 / 17 kW	20.5 / 21 kW	20.5 / 21 kW	24.6 / 25 kW	32.6 / 33 kW	35 / 36 kW	42 kW
Machine dimension (incl. platform)	6120x4530x2290	6330x4720x2340	6620x4920x2520	7580x5930x2764	7760x6280x2830	7760x6470x2830	7760x6800x2850
Machine dimension (excl. platform, turning frame)	4200x2510x2290	4410x2640x2340	4700x2880x2520	5210x3040x2764	5390x3450x2830	5390x3640x2830	5390x3880x2850
Machine dimension (incl. platform) / Q series	7440x4540x2425	7750x4720x2440	8150x4920x2566	9360x5930x2764	9610x6280x2830	9610x6470x2830	7680x6800x2850
Machine dimension (excl. platform, turning frame) / Q series	5540x2490x2425	5840x2630x2440	6220x2900x2566	7000x3040x2764	7240x3450x2830	7240x3640x2830	7080x3880x2850
Total weight (standard / Q series)	≈15 / 17 t	≈17 / 19 t	≈21 / 24 t	≈26 / 28 t	≈32 / 34.5 t	≈34 / 38 t	≈39 t

Specifications are quoted exactly from the 2026 FAST brochure. "Q series" values are for the stripping (BF) configuration. Where a single value is listed (MWB2500), the standard configuration applies. Specifications may be adjusted without prior notice - confirm the final configuration with our engineers before ordering.

Applications

Applications & Suitable Materials

The Hand Angel MWB semi-automatic die cutting machine serves corrugated board and cardboard producers across the packaging chain.

Corrugated board (1–8.5 mm)
Cardboard (from 1 mm)
RP hollow board
Food, beverage & fresh produce
Daily use & groceries
Electronics & appliances
Industrial & auto parts
Logistics & e-commerce
Building materials & home furnishing
Pet supplies

Optional Configurations

Tailor the Machine to Your Production Line

Stripping (Q / BF) Configuration

The stripping configuration adds the automatic stripping section with male/female templates, clearing waste from three sides and the center. Available on models from MWB1300/BF to MWB2300/BF.

Customized Configurations

Tell us your board grade, sheet size and line layout - our engineers will configure the machine, feeding and delivery options to match your workflow and budget.

Production Management Integration & Remote Service

The machine can be integrated with production management systems for digital management; remote maintenance and equipment upgrade services are available.

Delivery & Auxiliary Options

High-pile delivery with photoelectric sensors is standard; additional delivery and material handling options can be configured for your production line.

Why Buy Direct from the Manufacturer

Shandong Century Machinery - Your Die Cutting Machine Manufacturer

Buying a die cutter is a long-term investment. Here is what 7,000+ customers in 70+ countries rely on.

ISO9001/CEPlus CCC & RoHS certified

120+Various patents (21 invention + 87 utility model)

70+Countries served worldwide

7,000+Customers with global support

Shandong Century Machinery (Xinchuan) is a national high-tech enterprise and a Shandong Province specialized & innovative "Little Giant", holding 118 independent intellectual property rights and recognized as a Shandong Provincial Industrial Design Center. Its 40,000 m² plant employs over 300 staff, including more than 50 R&D engineers.

Get Your Machine Quotation Now

FAQ

Frequently Asked Questions

Common questions from packaging plants buying semi-automatic die cutting machines. Keep this section in sync with the FAQPage schema in the page head.

What is the difference between a semi-automatic and a fully automatic die cutting machine?

A semi-automatic die cutting machine like the Hand Angel MWB series uses manual sheet feeding - an operator places sheets into the feed section - while die cutting, stripping (BF models) and stacking are automatic. This offers a significantly lower investment cost while still delivering high-speed, high-pressure die cutting up to 4,800 sheets/h, making it ideal for plants with lower labor cost or moderate production volumes.

What materials can the MWB series process?

The MWB series processes 1 mm cardboard up to 8.5 mm corrugated board. All seven models (MWB1300/BF through MWB2500) share the same stock range at ±0.5 mm cutting precision.

Which model should I choose - 1300, 1450, 1620, 1850, 2100, 2300 or 2500?

Choose by sheet size and speed: MWB1300/BF handles max 1330 x 980 mm sheets at the highest speed of 4,800 sheets/h; MWB1450/BF handles 1480 x 1080 mm; MWB1620/BF handles 1650 x 1210 mm; MWB1850/BF handles 1880 x 1420 mm; MWB2100/BF handles 2110 x 1520 mm; MWB2300/BF handles 2300 x 1520 mm; MWB2500 handles the largest format, 2500 x 1620 mm, with max cutting pressure of 450 x 10^4 N at 2,800 sheets/h.

Do the BF models include a stripping section?

Yes. The BF models (MWB1300/BF through MWB2300/BF) include an automatic stripping section that clears waste from three sides and the center using male and female stripping templates, ensuring thorough waste removal. The MWB2500 is available as the standard semi-automatic die cutting machine.

Do you send engineers for on-site installation and commissioning?

Yes. We dispatch qualified service engineers to your facility to perform full machine installation, calibration and commissioning. They ensure your MWB series die cutter is set up correctly and running at optimal performance before handover, and provide on-site operator training covering operation, daily maintenance, troubleshooting and safety procedures.

What are your payment and shipping terms?

We operate on a standard deposit plus balance before shipment structure. Shipping terms are flexible - FOB, CIF or EXW based on your preference. We partner with reliable freight forwarders to ensure safe and timely delivery worldwide.
