MWB1450BF – Semi-Automatic Flatbed Die Cutter with Stripping
Max speed: 4,500 sheets/h
Precision: ±0.5mm
Max sheet size: 1450 × 1100mm
Stock range: 1 – 8.5mm corrugated
Hydraulic pressure system
Integrated stripping station
CE certified
Cost-effective for corrugated packaging
Inquiry
Contact Us

MWB1450BF Semi-Automatic Flatbed Die Cutter with Stripping Section

4,500 sheets/h | Hydraulic pressure system | Max sheet 1450×1100mm | 1–8.5mm corrugated

Key Specs Pills:



📏 Max sheet: 1450 × 1100mm

⚙️ Mechanical speed: 4,500 sheets/h

🔧 Hydraulic pressure system

📦 Stock range: 1 – 8.5mm corrugated

🛡️ CE certified

Product Overview

Cost-Effective Semi-Automatic Die CuttSolutioning



The MWB1450BF is a semi-automatic flatbed die cutter with an integrated stripping section, designed for corrugated board processing from 1mm to 8.5mm thickness. Combining manual sheet feeding with automatic die-cutting and stripping, this machine offers an ideal balance between investment cost and production efficiency. It is particularly suitable for small and Medium-sized packaging plants, job shops, and businesses handling medium-volume orders with varied sheet sizes.



Key differentiators (3 bullet points):

Semi-automatic operation – Manual feeding + automatic cutting/stripping, lower labor cost

Hydraulic pressure system – Stable and consistent cutting force

Integrated stripping – Automatic waste removal, reduces manual sortin

Technical Specifications – MWB1450BF



Parameter

Specification

Max. Paper Size

1450 × 1100 mm

Min. Paper Size

500 × 400 mm

Max. Cutting Pressure

300 × 10⁴ N

Stock Range

1mm board – 8.5mm corrugated

Cutting Precision

±0.5 mm

Mechanical Speed

4,500 sheets/hour

Pressure System

Hydraulic

Stripping Section

Integrated automatic stripping

Feeding Method

Manual (semi-automatic)

Main Motor Power

15 kW

Total Power

20.5 kW

Machine Dimensions (L×W×H)

6330 × 4720 × 2340 mm

Total Weight

 17 Tons

Certification

 CE



Key Functional Features



Icon

 Feature

Description

🔧

 Hydraulic Pressure System

Provides stable and consistent cutting force throughout the production run, reducing wear on cutting rules.

🧹

 Integrated Stripping Station

Automatically removes waste from cut sheets, eliminating manual waste separation and saving labor.

📏

 Wide Sheet Range

Handles sheets from 500×400mm up to 1450×1100mm, accommodating diverse order sizes.

📦

 Heavy-Duty Construction

Built for 1–8.5mm corrugated board, including single-wall, double-wall, and triple-wall materials.

⚙️

 Mechanical Speed 4,500 s/h

Optimized for medium to high-volume production while maintaining reliability.

🎯

 ±0.5mm Precision

Maintains high cutting accuracy even with heavy-duty corrugated stock.

🛡️

 Safety Guards & Sensors

Full safety covers and emergency stop system for operator protection.

🔄

 Quick Chase Change

Simplified chase replacement system reduces setup time between jobs.

Technical Advantages of MWB1450BF



Left Column – Hydraulic System:

  • Hydraulic pressure provides smoother, more consistent cutting compared to mechanical clutch systems
  • Pressure adjustable to match different board thicknesses and materials
  • Lower maintenance requirements and longer service life
  •

Right Column – Stripping Integration:

  • Stripping section synchronized with die-cutting cycle
  • Automatic waste ejection into collection bin
  • Reduces post-process manual labor by up to 60%



Left Column – Robust Frame:

  • Heavy-duty cast iron construction minimizes vibration
  • Ensures ±0.5mm precision even at maximum speed
  • Designed for 24/7 continuous operation



Right Column – User-Friendly Operation:

  • Intuitive control panel with diagnostic display
  • Manual sheet feeding with optical positioning guide
  • Quick setup for repeat orders
012

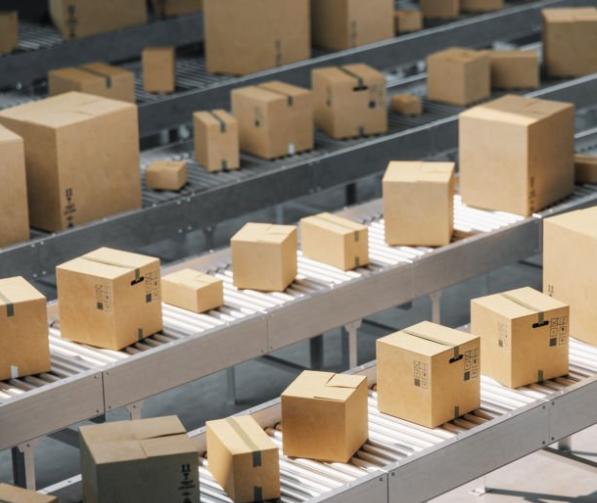

Standard shipping boxes, RSC and die-cut styles

012

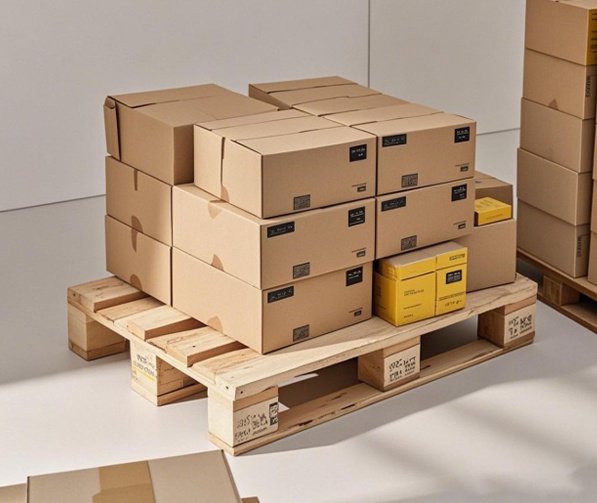

Heavy-duty corrugated containers for logistics

012

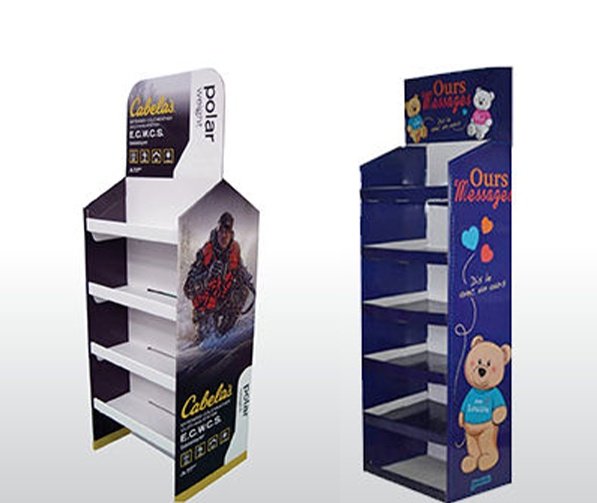

POP/POS stands and floor displays

MWB1450BF vs. Fully Automatic Die Cutter – Which One Do You Need?



Feature

 MWB1450BF (Semi-Automatic)

Fully Automatic Series

Feeding

 Manual sheet feeding

Automatic suction feeder

Speed

 4,500 sheets/h

5,000–5,500 sheets/h

Investment Cost

 Lower

Higher

Labor Requirement

 2 operators

2 operators

Best For

 Medium volume, varied sheet sizes

High volume, long runs

Stripping

 Automatic

Automatic

Precision

 ±0.5mm

±0.5mm

Summary recommendation:

Choose MWB1450BF if you need a cost-effective entry into automatic stripping, handle medium volumes with frequent size changes, or are setting up a new packaging production line.

Why Choose Century Machinery?

  • National "Little Giant" Enterprise (China)
  • Only China Flatbed Die-Cutting R&D Center
  • Awarded by China Packaging Federation
  • 70+ countries served since 2015
  • 7,000+ global customers



  • ISO9001 & CE Certified
  • 40,000m2 facility, 300+ employees
  • 50+ R&D engineers
  • 24/7 technical support
  • On-site service available

Testimonial (optional):

*"The MWB1450BF gave us automatic stripping at half the cost of a fully automatic machine. Setup is straightforward, and it handles our 5mm B-flute corrugated perfectly."* – Production Manager, Packaging Plant, Southeast Asia

FAQ:



Q1: What is your warranty policy?

A: We offer a 12-month warranty from the shipping date, covering manufacturing defects. During this period, we provide repair, replacement, or refund services according to our "three guarantees" policy.

Q2: Do you send engineers for on-site installation and commissioning?

A: Yes. We dispatch qualified service engineers to your facility to perform full machine installation, calibration, and commissioning. They ensure your MWZ series die-cutter is set up correctly and running at optimal performance before handover.

Q3: What training do you provide for my operators?

A: Our engineers provide on-site training covering machine operation, daily maintenance, troubleshooting, and safety procedures. We also supply detailed manuals and video guides for ongoing reference.

Q4: What is your after-sales service response time?

A: For technical support, our team responds within 24 hours. For critical issues requiring an on-site visit, we typically arrange engineer dispatch within 5–7 business days after confirmation, depending on visa and travel requirements.

Q5: What are your payment and shipping terms?

A: We operate on a standard deposit + balance before shipment structure. Shipping terms are flexible (FOB, CIF, EXW) based on your preference. We partner with reliable freight forwarders to ensure safe and timely delivery worldwide.
