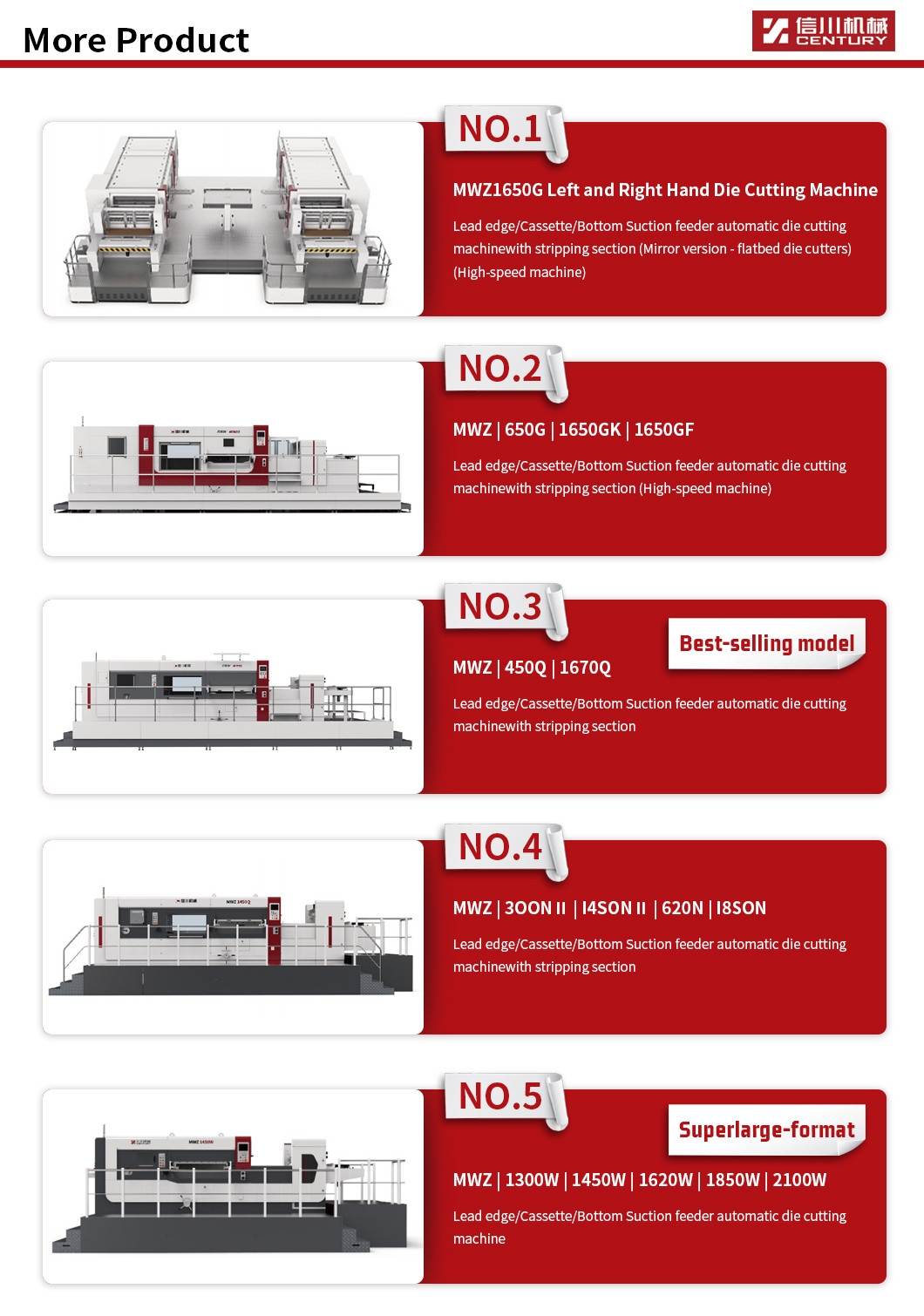

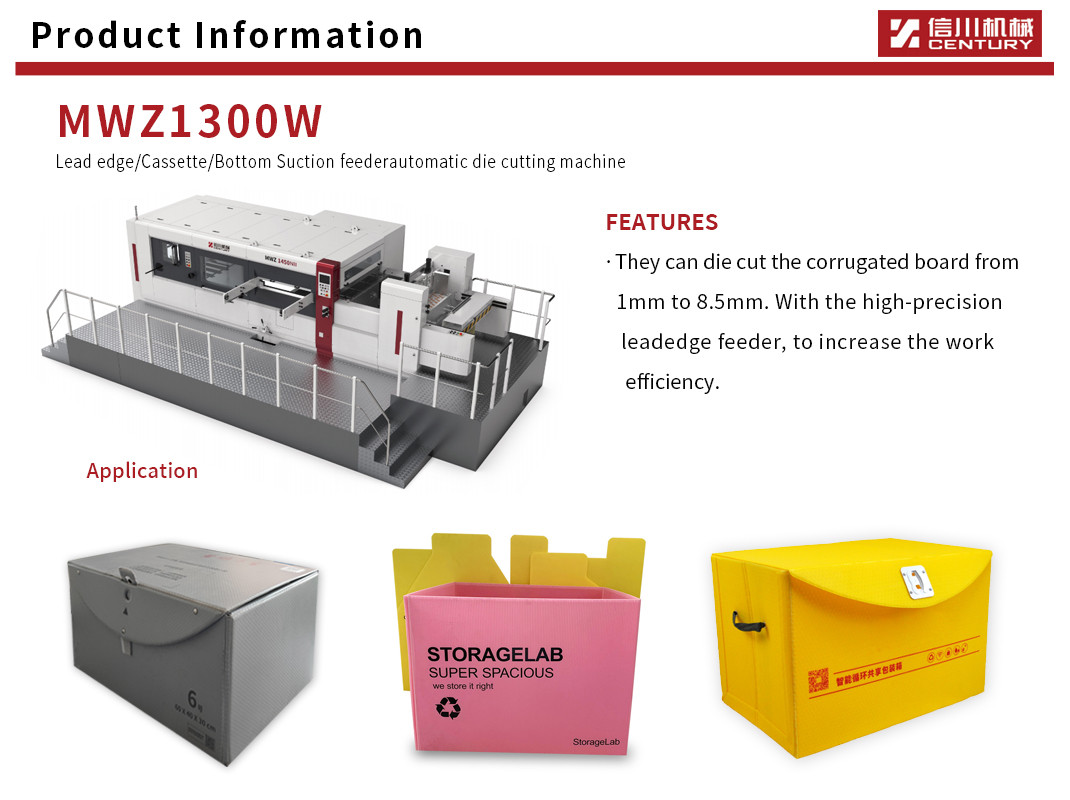

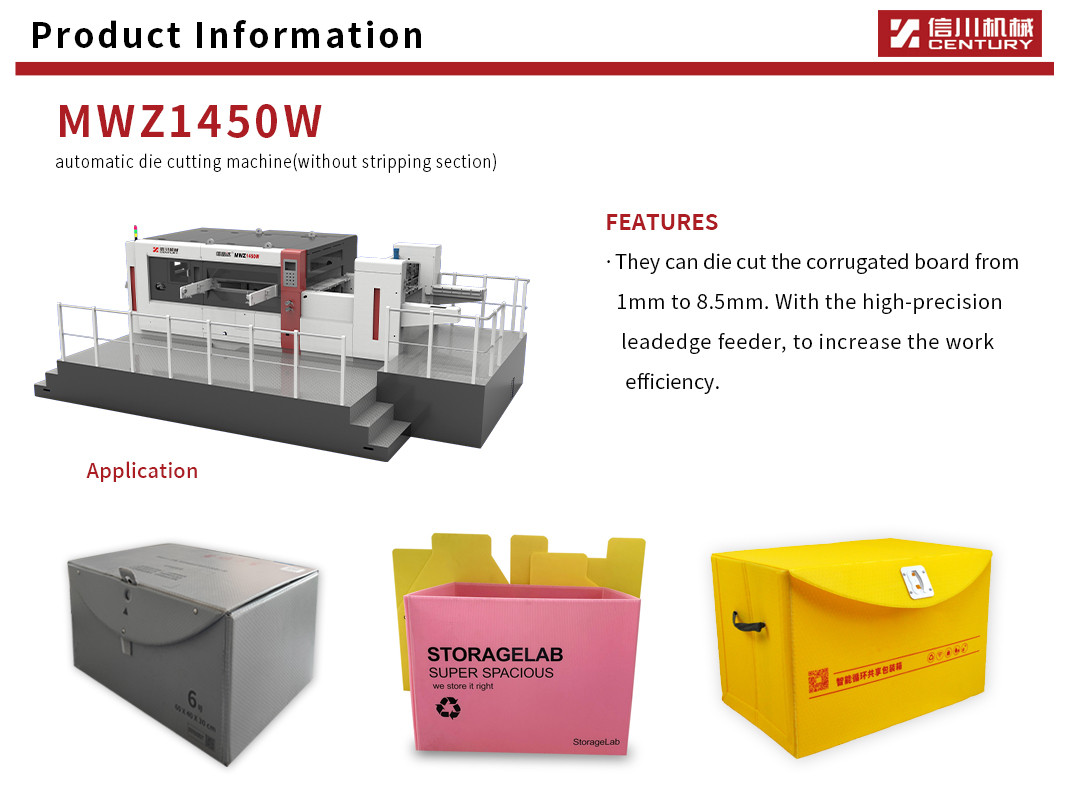

MWZ1300W/1450W/1620W/1850W/2100W Lead edge/Cassette/Bottom Suction feeder automatic die cutting machine

They can die cut the corrugated board from 1mm to 8.5mm.With the high-precision lead edge feeder,to increase the work efficiency.

Inquiry

Model	MWZ1300W	MWZ1450W	MWZ1620W	MWZ1850W	MWZ2100W

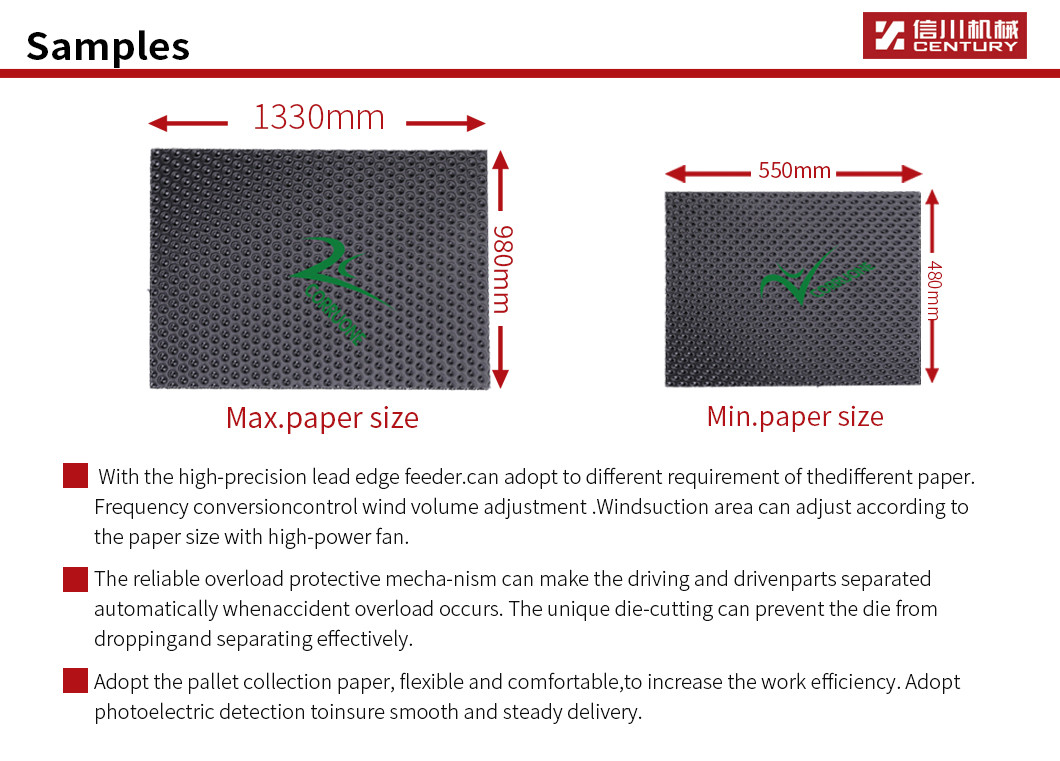

Max. paper size	1330×980mm	1480×1080mm	1650×1210mm	1880×1420mm	2110×1520mm
Min. paper size	550×480mm	600×500mm	650×500mm	650×550mm	650×550mm
Max.cutting size	1330×960mm	1450×1050mm	1620×1190mm	1850×1400mm	2080×1500mm
Max.cutting pressure	250×104N	300×104N	300×104N	350×104N	400×104N
Stock range	1≤corrugated board≤8.5mm
Cutting precision	±0.5mm
Max.mechanical speed	4800s/h	4800s/h	4500s/h	3500s/h	3000s/
Cutting rule height	23.8mm
Pressure adjusting range	±1mm
Min.front margin	8mm
Inner chase size	1330×1004mm	1480×1104mm	1650×1220mm	1880×1430mm	2110×1524mm
Paper delivery height	1320mm	1330mm	1390mm	1705mm	1705mm
Main motor power	11kw	15kw	18.5kw	22kw	30kw
Total power(double servo,exclude air compressor)	27kw	31kw	34.5kw	39.6kw	47.6kw
Machine Dimension(include the platform)	6652×4410×2432	7437×4632×2587	8051×5075×2595	8850×5930×2800	9020×6280×2870
Machine Dimension(exclude the platform,turning frame)	6100×2520×2432	6500×2690×2587	7200×2950×2595	7700×3040×2800	7880×3450×2870
Total weight	≈18t	≈20.5t	≈27t	≈28t	≈34.5t
