• MWB1300Q/1450Q/1620Q/1850Q Semi-automatic die cutting machine with stripping section

MWB1300Q/1450Q/1620Q/1850Q Semi-automatic die cutting machine with stripping section

Updated:2020-09-07

Domestic Initiative
Semi-stripping system can clean three sides and middle part automatically with high efficiency.
Stripping plate adopts central positioning system, automatic clamping.
Upper Stipping plate adopts electric control lifting device.

Inquiry

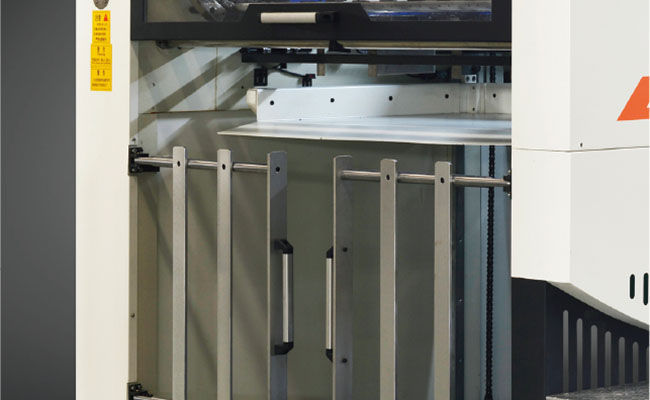

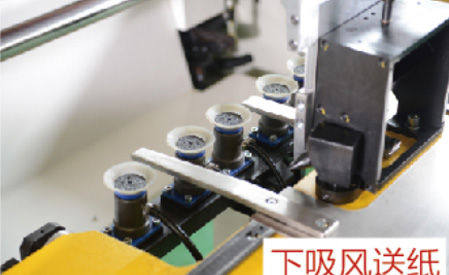

Feeding section



Various models within the range and optional feeders can be installed subject to requirements. Both pin or standard open gripper type. Suitable for solid board up to 2,000gsm and corrugated board up to 9mm.

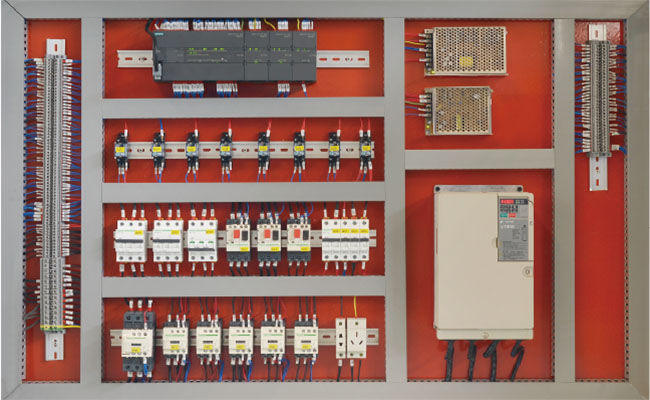

Electrical Control Part



PLC control, safe and reliable. Electrical ControlPart: PLC control is adopted in ElectronicControl System. There are various safeguarding devices that when accident occurs, itwill give an alarm by sound and light andshutdown automatically to protect safety of manand machine.

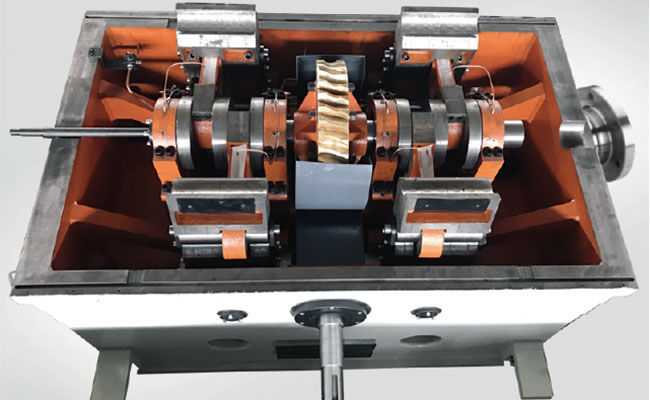

Main Driving System



The main drive comprises worm gear and cams on precision crank shaft linkage. Mechanism includes bearing shells to prevent impacting and assures smooth running. Diecutting pressure generated from 200-350 ton depending on model.

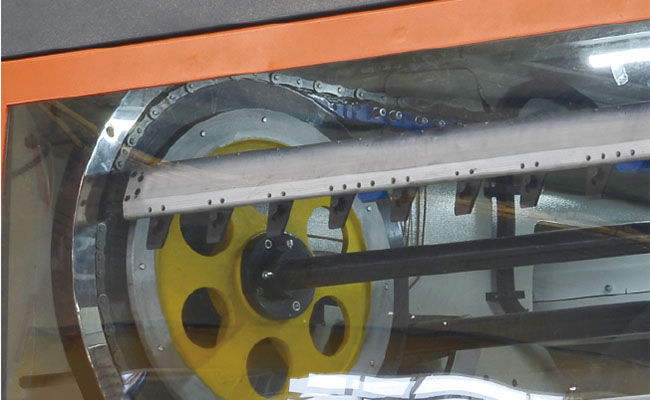

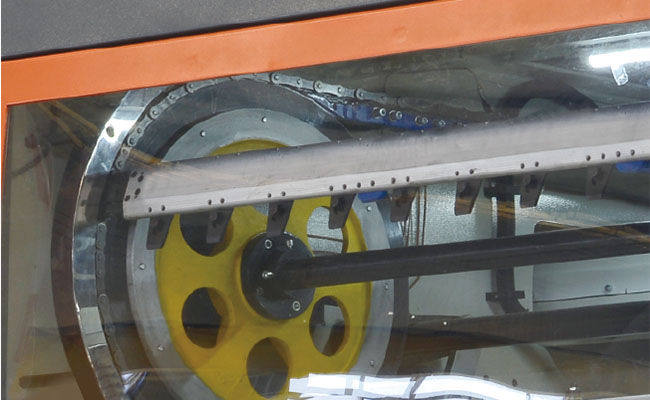

Main Chain Drive



Qualitysouroedchains toenhanoe performanoeandlong ife. Mainchaindrive withoverload feature.Use of high tensile chains for strengthand wear resistance.

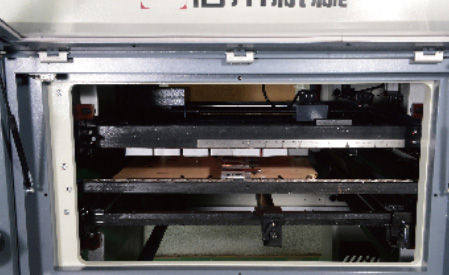

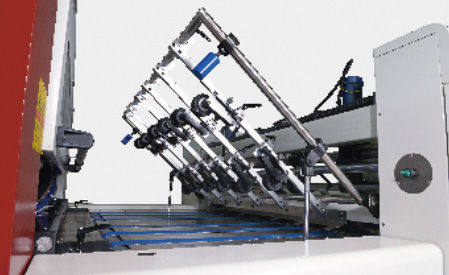

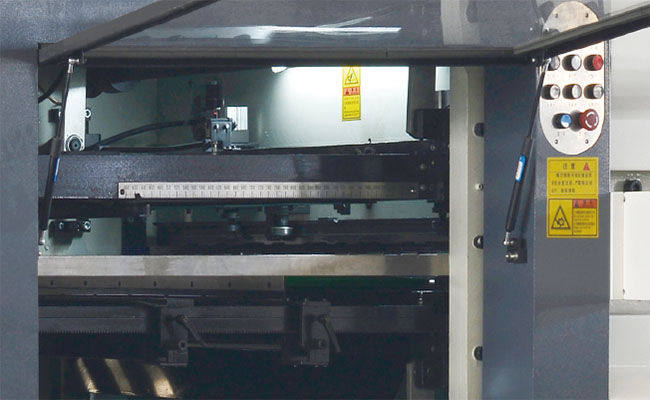

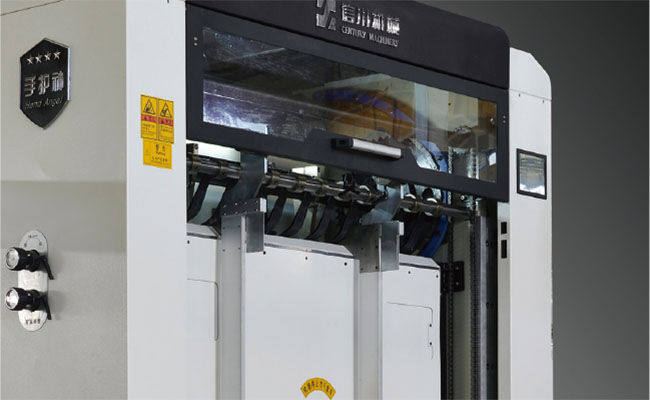

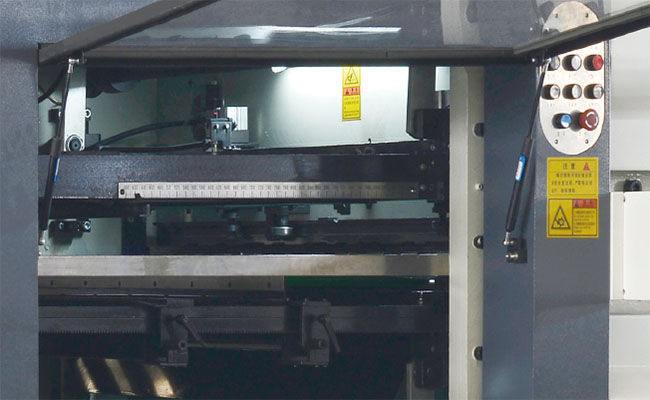

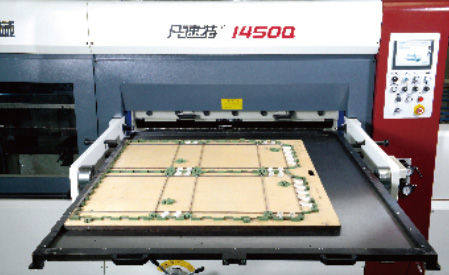

Stripping Section


Centralised positioning feature, motorised hoist on upper frame, waste removal right, left, rear & internal.

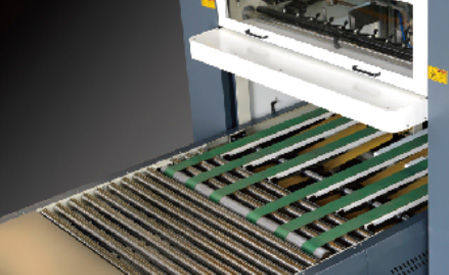

Delivery Section


Two options available. Conventional pallet continuous or batch counter collected. Either provide smooth delivery of stack.


Technical specifications

Model            MWB 1300Q            MWB1450Q            MWB1620Q            MWB 1850Q
Maximum paper size            1330×980mm            1480×1080mm            1650×1210mm            1880×1420mm
Minimum paper size            550×480mm            550×480mm            550×650mm            650×550mm
Maximum cutting size            1300×960mm            1450×1050mm            1620×1190mm            1850×1400mm
Maximum cutting pressure            250×104N
300×104N            300×104N            300×104N
Stock range            Corrugated board≤9mm            Corrugated board≤9mm            Corrugated board≤9mm            Corrugated board≤9mm
Cutting precision            ±0.5mm            ±0.5mm            ±0.5mm            ±0.5mm
Maximum mechanical speed            4200s/h            4000s/h            3600s/h            3500s/h
Pressure adjusting range            ±1mm            ±1mm            ±1mm            ±1mm
Minimum Gripper margin            Gripper≥8mm            Gripper≥10mm            Gripper≥10mm            Gripper≥10mm
Inner chase size            1330×990mm            1480×1080mm            1646×1220mm            1890×1430mm
Paper delivery height            1100mn            1118mn            1140mn            1500mm
Total power            17kw            21kw            21kw            24kw
Machine Dimension(include the work platform、prefeeder)            7440×4640×2425mm            7750×4720×2440mm            8150×4920×2566mm            5295×3060×2600mm
Machine Dimension  (exclude the work platform、prefeeder、die change frame)            5540×2490×2425mm            5840×2630×2440mm            6220×2900×25660mm            7200×5100×2600mm
Gripper/needle number/each            10/16            11/18          12/20            14
Tatal weight            ≈17t            ≈19t            ≈24t            ≈24t
