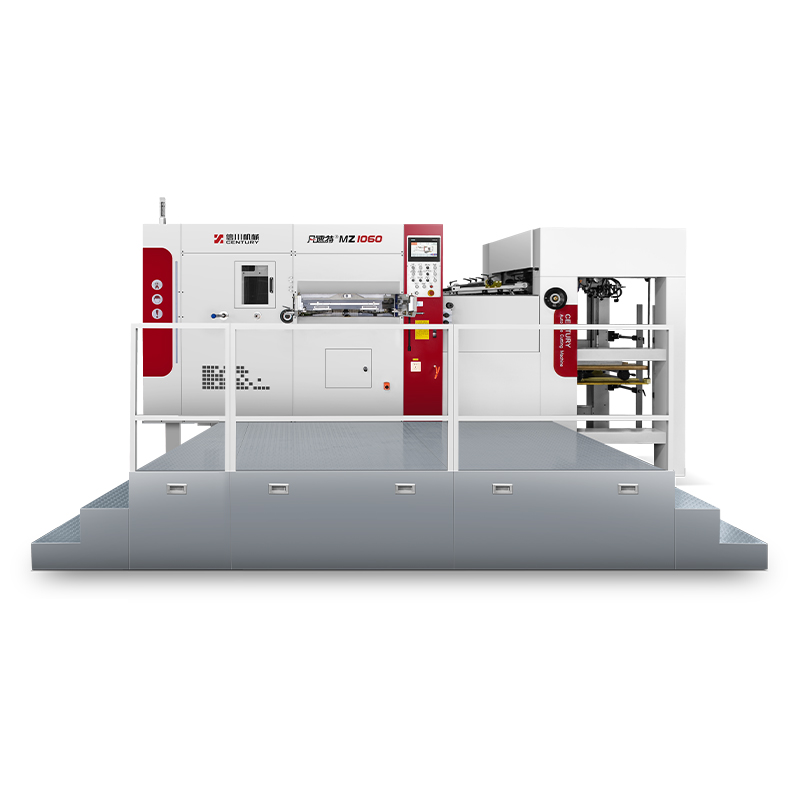

  • MZ1050/1050Q,/1060Q/MWZ1450QS Top Feeder Automatic Die Cutting Machine With Strpping Section

›

MZ1050/1050Q,/1060Q/MWZ1450QS Top Feeder Automatic Die Cutting Machine With Strpping Section
Inquiry
Contact Us

ModelMZ 1050MZ 1050QMZ 1060QMZ1300QSMWZ 1450QS
Max. paper size1050×750mm1050×750mm1060×760mm1330×980mm1480×1080mm
Minimum paper size400×360mm400×360mm400×360mm550×480mm600×500mm
Maximum cutting size1040×730mm1040×730mm1050×750mm
1300×960mm1450×1050mm
Maximum cutting pressure300×104N300×104N300×104N300×104N300×104N
Stock range

Cardboard90-2000g Corrugated

 board≤4mm

Cardboard90-2000g Corrugated

board≤4mm

Cardboard90-2000g Corrugated

board≤4mm

Cardboard≥200g 1≤Corrugated

board≤5mm

Cardboard200-2000g Corrugated

board≤8mm


Cutting precision±0.1mm±0.1mm±0.1mm±0.2mm±0.3mm
Maximum mechanical speed7500s/h7500s/h8000s/h
6500s/h
6000s/h
Paper delivery height1300mm1300mm1300mm1600mm
23.8mm
Paper feeding height1500mm1500mm1500mm1600mm
1330mm
Pressure adjusting range±1mm±1mm±1mm±1.5mm±1mm
Minimum front margin8mm8mm8mm8mm8mm
Inner chase size1140×756mm1140×756mm1143×779mm1338×1015mm1476×1104mm
Total power20kw20kw15kw15kw18kw
Main motor power11kw11kw25kw32.5kw37kw

Machine Dimension

(include the platform)

5050×4400×2440mm6000×4400×2440mm5780×2900×2530mm10365×4710×2700mm9921×5176×2627mm

Machine Dimension

 (exclude the platform)

5050×2400×2440mm6000×2400×2440mm5780×4935×2530mm
7550×3550×2700mm7836×2722×2627mm
Tatal weight≈15.5t≈17t≈15.5t≈22t≈23.5t
